New Design High Quality Municipal Solid Waste Separation Machine Ballistic Separator

Product Description

Detailed Photos

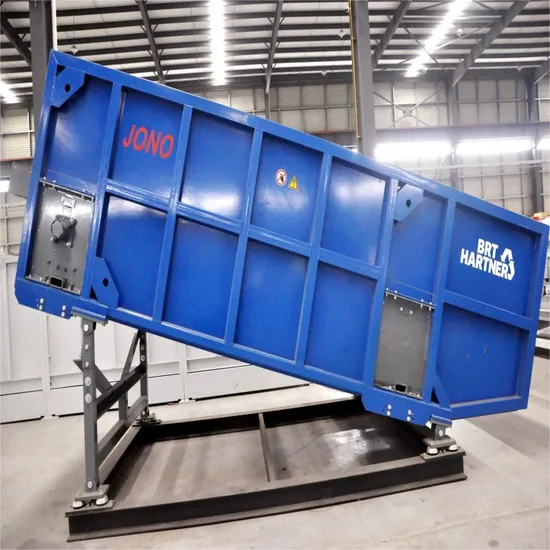

Adopting the imported German crankshaft mechanism transmission,ballistic screen can sort the materials into three categories and bounce off the materials attached to the package to achieve an unparalleled sorting effect.
Working Principle
By the active and passive crankshaft,the screen unit moves in a ovalcircle while the neighboring paddles moves asynchronously.When the material is dropped on the screen unit in the central area of the screen unit,the 3 dimensional material will bounce off the screen unit and the 2 dimensional material will climb over the screen unit and the small material reened out through the screen holes.By the way,the material is well separated into 3 types of material.
Product Parameters
Features Integral crankshaft, imported from Germany, with a lifespan of no less than 20,000 hours Swedish Hardox steel screen plates and side plates have high wear resistance and long service life Quick and convenient screen angle adjusting hydraulic device to optimize different material screening Wind-assisted sorting to improve material screening effect Use frequency converter to control speed and optimize performance Self-cleaning between screen plates to improve equipment efficiency The screen plate is provided with an anti-wrap device to protect the crankshaft from being entangled Centralized lubrication system make it easy to operate and maintain The quick-opening maintenance door at the rear is convenient and safe to operate.

Model	WT35-338	WT45-338	WT60-338	WT90-338	WT120-338
Useful width(m)	2.1		2.7	4.2	5.4
Paddle length(m)	4.3	6.3
Power drive(kw)	7.5		11	15	22
Throughput capacity(m³/h)	0-40	45-60	60-90	90-120	120-200
Screening area(m²)	8.6	12.6	17.1	25.2	34.1
Paddle quantity	6		8	12	16
RPM	0-200(Frequency controlled)
Sieve mesh	20-100mm,rectangle/round
Voltage	3x380 v±5%/50 Hz
Internet	TNC
Optional device	Air fan support,motor hydraulic angle adjuster,Top cover,central greasing system

Company Profile
JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association.


First stage plant covers and area of 27000 square meters, whose floor area is 34000 square meters and the overall investment is 100 million RMB. on March 18, 2015, the construction work was started. it is equipped with technology institute, science and technology demonstration hall, pilot test and industrial centeer, large-scale material test center, high- standard manufacturing factory.
Panorama Picture


Jono has a complete and professional group of teams of research and development design, project management, equipment manufacturing, electrical automation and solid waste recycling waste recycling operation. Each team can be either independent to provide customers with services such aselectrical automation, equipment manufacturing, technology development and other professional services, or jointly provide customers in MSW sorting or recycling industry with complete solutions and whole plant EPC project general contracting services.

Factory and Workshop Pictures

Sucessful Projects
By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities . Our equipment is capable of handling more than 50,000 tons of waste every day.Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste.

Jono Projects All Over the World
6 Key Technology

Artificial Intelligence Sorting	Biological Treatment
Mechanical Shredding	Conveying&Storage
Mechanical Sorting	Mobile Solutioins

7 Solutions

Municipal Solid Waste	Landwill Waste
Organic Waste	Construction Waste
Recyclables	Bulky Waste
Industrial Waste	Decoration Waste

Certifications


Partners and Clinets

Lindner, Austria. Lindner was frormed in 1948. As a specialist in shredding technology in Europe, it is also one of the famous waste shredder manufacturers.

BRT-Harter, Germany. It is the leading company in the field of Mechanical sorting. The sales of Bag-opener takes 60% of the European market share. The sales of ballistic screen is over 500 sets globally, the machines provided by BRT-Hartner are used in more than 1000 countries.

MVT, Italy Founded in 1968, it is a market leader in the bio-drying, compost and in the design, construction and installation of air suction and purification systems which remove dust, fumes, vapours and Volatile Organic Compounds. Now globally over 50 projects have been sucessfully completed.

FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on more than 80 projects, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
If you have any need ,pls feel free to contact us.
