Factory Price Pet Plastic Wide Mouth Bottle Jars Making Blow Moulding Machine

Product Description

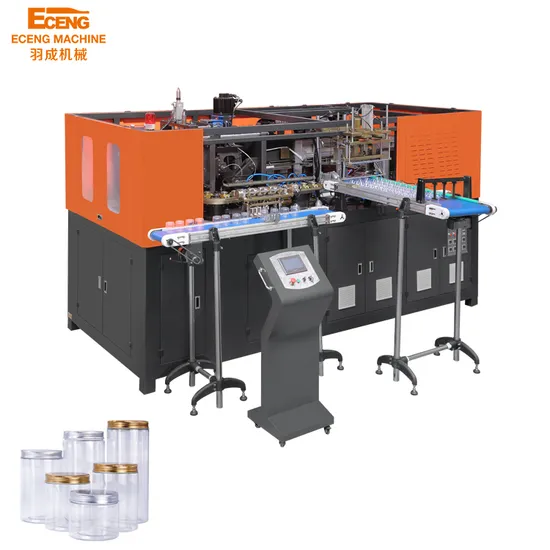

Factory Price PET Plastic Wide Mouth Bottle Jars Making Blow Moulding Machine
Model type: J2
J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.it is especially suitable for the production and processing of large-diameter neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which can be more stable.strong versatility,suitable for preform loading of jar bottle,automatically unloading the bottle.
one worker can controll two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
Machine parameter:

	item	J2
Bottle type specification	cavity	2
	theoryoutput(PCS/HR)	1500
	Max. volume (L)	5L
	Bottle mouth maximum overall diameter (mm)	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.5kw
	Maximum heating power	48kw
	All electric machine installation	51kw
	actural consumption	35.7kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3400Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10 C
	Consumption	6000kcal/hr
	Frozen water flow	50Ltr/min
Machine specification	Size of the machine	4.7x1.6x1.9 (m)
	Weight of the machine	3.0ton

ECENG FACTORY
ECENG EXHIBITION:
CUSTOMER VISITING
FAQ:
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
Q6: Where is your factory located?
A6: Our factory,near Shanghai & Ningbo port, is located in Zhangjiagang,Jiangsu.

Q7: How about quality control in your factory?
A7: " Quality is the key point, do what customers need"
Eceng machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

Q8: Do you provide bottle blow mould and air compresor ?
A8: Yes , we provide complete system and you will no need to find the suitable air compressor and chiller...etc..

Q9: What is the language of the PLC and touch panel?
A9: Don't worry, we will translate the language in English,Spanish or any other language, to make sure you will have an easy operation .
Q10: Do you have reference project?
A10: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q11: Do you have agent and after-service stations?
A11: So far we have agent in Thailand,Vietnam,Columbia,Indonesia. welcome to join us!
Q12: Do you provide customized service
A12: We can design the machines according to your requirements(material ,power,filling drink,different bottle neck and bottle design,logo design and so on),give you suggestions for your unique needs.
