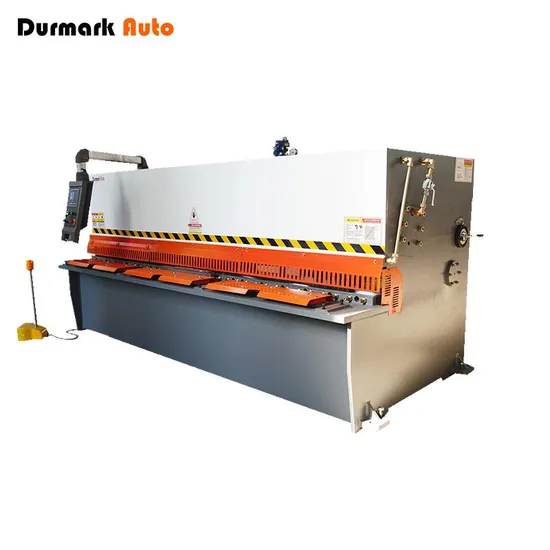

High-Speed Hydraulic QC12K-10X6000swing Beam Shearing Machine

Product Description

high cutting accuracy QC12Y 4x2500 sheet metal shearing machine steel plate hydraulic shearing machine
Main feature
1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
Technical parameter

NO	Item	Value	Unit
1	Max cutting thickness	10	mm
2	Max cutting width	6000	mm
3	Plate strength	450	N/mm2
4	Shearing angle	1º30'	degree
5	Back-guage max distance	600	mm
6	Stroke time	6	time/min
7	Distance between columns	6500	mm
8	Blade length	6100	mm
9	Worktable height	810	mm
10	Main mptor power	15	kw
11	Dimension	6800*2000*2100	mm
