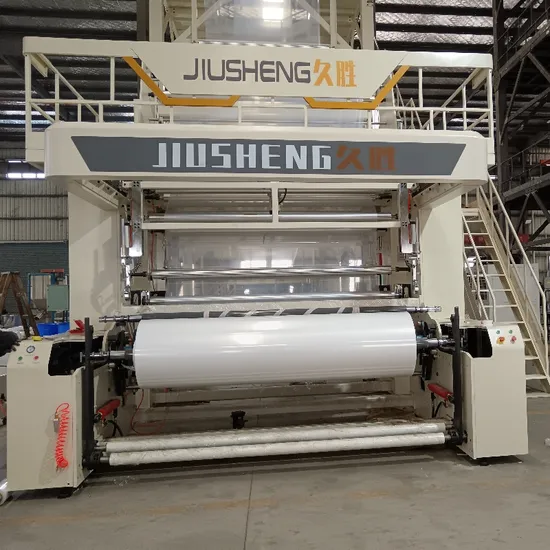

Jiusheng 3 Layer ABC High Output LDPE HDPE Film Blowing Machine

Product Description

Wuhan Jiusheng High Output Capacity 3 layer ABC LDPE film blowing machine Detailed Photos
Product Parameters

Model	JS-3-JCM-1800	JS-3-JCM-2000
Product Name	Wuhan Jiusheng high output automated shrink pe film blowing extruder machine
Suitable material	LDPE,LLDPE,HDPE,EVA,EVOH
Film layer	3 layers
Film thickness	0.02-0.30mm
Max film width	1600mm	1800mm
Max output	300-700Kg/h	350-700Kg/h
Screw diameter	φ65/φ75/φ65	φ75/φ85/φ75
Screw L/D ratio	33:1	33:1
Die head diameter	φ350mm	φ350mm
Air ring diameter	φ350mm	φ350mm
Main motor power	37/55/37	55/75/55
IBC system	Germany P+F system or WECON system
EPC system	Center or side ultrasonic photoelectric type
Screen changer	Double station manual quick net change + pressure gauge
Winding method	Surface center clearance three in one winding or automatic back to back friction winding
Tension control system	Tension sensor
Overall Dimension (L*W*H)	14500*7000*13500	14500*7500*13500

Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine
Main Components
Company Profile
Our Equipment in Factory
The Patent Certificate We Obtained

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
