Horizontal Wood Pellet Mill Hx1030s with 5-6tons Pellet/Hour
| US$88,000.00-128,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HX1030S
Automatic Grade
Automatic
Controlling Mode
PLC
Energy Saving
Energy Saving
Certification
CE, ISO, SGS
Warranty
2 Years
Customized
Customized
Condition
New
Color
Multi Color
After-sales Service
Full Life
Main Motor
315kw
Auxiliary Power
18kw
Capacity
5-6 Tons Per Hour
Machine Weight
20.3 Tons
Transport Package
Plywood
Specification
4.2m*2.3m*1.97m
Trademark
HX
Origin
China
HS Code
847930000
Production Capacity
2000 Sets Per Year
Product Description

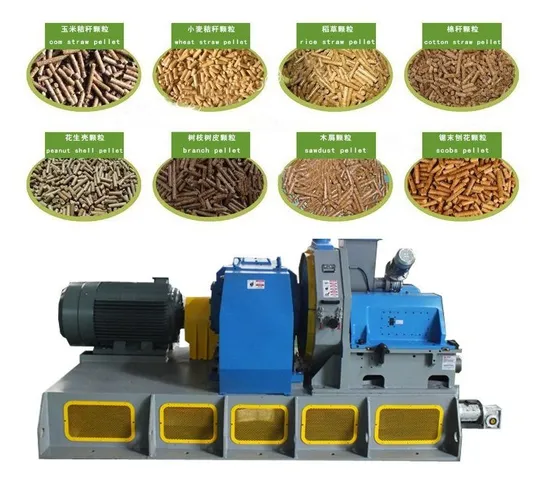

Intelligent Wood pellet machine HX1030S1. Characteristics:
1). Middle base totally movable. Easily change press roller and ring die.
2). Press roller and bearing external fixed.Solved press roller and bearings burning problem.No need to add grease.
Recycle water cooling.
3). Press roller gap adjusting during operation.
4). Single point adjustment handle. Adjust double press roller at one time.
5). Recycling water cooling system Realize continuous running
6). Reducer system
High and low temperature protection system
High precision oil pressure meter, Tubular condenser
7). High precision temperature sensor monitoring system at key points.
Main motor; Gearbox; Mound chamber; Left bracket; Right bracket
8). Intelligent monitoring system.
One-touch open system with limit switch. Protection system ensure 99% running rate.So no breakdown, 24 hours per day running, grease-free. Lower maintainance cost
| Model | HX1030S |
| Main motor | 315KW |
| Auxiliary motors | 18KW |
| Wood pellet capacity | 5-6 tons per hour |
| Machine weight | 21 tons |
Pictures at sites:
Spare parts and control system
We use the most advaned steel alloy as ring die and rollers,and famous brand electronic parts
Shipment
Certificate
Clients visit
