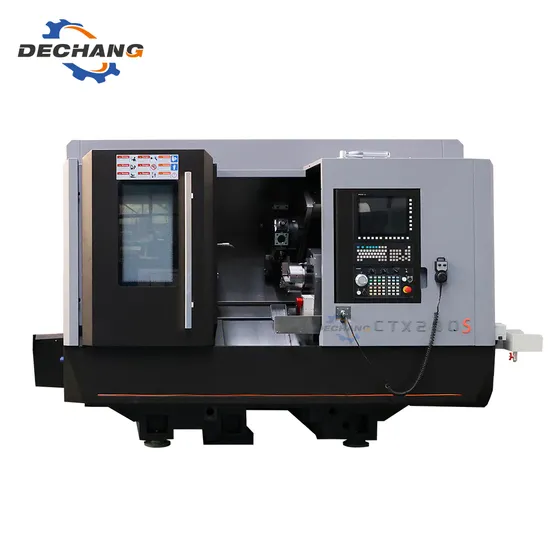

High Speed Dual-Spindle Turning Center Ctx200s Slat Bed CNC Lathe

Product Description

High speed dual-spindle turning center CTX200S slat bed CNC lathe
Product Description
Usage:
The workpiece clamped one time could finish all processing steps.
This machine tool has the high speed, the high precision, and the strong composite processing ability.
It can process various large and long workpieces.
It can be widely used in various industries such as aviation, energy, shipbuilding, and medical treatment. The
modular concept and the highly versatile options provide a wide range of machining possibilities, and
achieve machining from universal turning to complex parts complete machining.
Features
Taiwan roller type linear guide
Higher speed spindle unit
High power Y-axis motor
Embedded lubrication system
High rigidity integral inclined bed
Main technical specifications:

Specifications	Unit	CTX200S
Max.swing dia.over bed	mm	700
Max.swing dia.over slide	mm	350
Max.work piece length	mm	450
Max,bar capacity	mm	50
Max.processing diameter (plate)	mm	280
Spindle nose	GB59001	A2-6
spindle bore	0/mm	65
Spindle speed	/min	50-3000
Spindle shift mode		stepless speed regulation
Spindle motor power	KW	11
Chuck type		Hydraulic chuck
Chuck size	Inch	8
X axis rapid traverse	m/min	18
Y axis rapid traverse	m/min	6
7 axis rapid traverse	m/min	18
X axis servo motor torque	N.m	15
Y axis servo motor torque	N.m	6
Z axis servo motor torque	N.m	15
X axis travel	mm	200
Y axis travel	mm	±45
Z axis travel	mm	550
Guide way type		linear rail
Turret type		Horizontal 8/12 station
Tool shank size	mm	25X25/Ø40
sub-spindle nose		A2-6
sub-spindle bore	mm	65
sub-spindle speed	r/min	50-3500
Sub-spindle power		15
Total rated power	KW	32
Net weigh	kg	4250
Machine dimension (L×W×H)	(mm)	3370x2000x2200

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
