up Down Worktable 32mm Capacity Strong Vertiacl Drilling Machine
| US$760.00-900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
D-4132H
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
2
Hole Diameter
32mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE
Condition
New
Max Drilling Capacity
31.75
Max Tapping Capacity
M20
Spindle Speeds Range
320-1820 R/Min
Motor
1.5kw
Transport Package
Export Wooden Box
Specification
1040*640*1510mm
Trademark
OEM
Origin
Shanghai, China
Product Description
Product Features. Driling and Tapping
. Attractive and well placement design
. Solid structure, high rigidity
. Work table can turn 360°
. Long spindle travel
. Wide machining range
Product Parameter

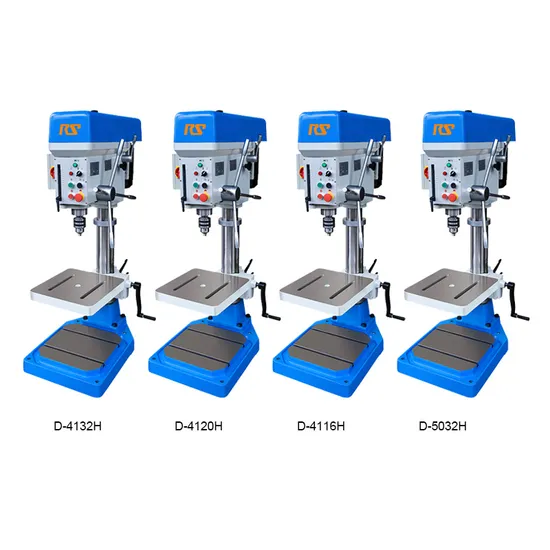

| Model | D-4132H | D-4120H/D-4116H | D-5032H/D-5032HP | D-4006H |
| Max.Drilling Capacity (mm) | 31.75 | 20/16 | 31.75 | 6 |
| Max.Tapping Capacity (mm) | M20(steel) | M20(cast iron)/M16(steel) M12(cast iron)/M10(steel) | M20(steel) | / |
| Distance spindle axis to column genetating line (mm) | 265 | 240/193 | 265 | 140 |
| Spindle travel (mm) | 150 | 135/100 | 150 | 65 |
| Max.Distance spindle nose to table (mm) | 390 | 365/330 | 820 | / |
| Max.Distance spindle nose to base (mm) | 745 | 675/610 | 1235 | 215 |
| Diameter of column (mm) | 100 | 85/70 | 100 | 55 |
| Spindle speeds range (r/min) | 320-1820 | 340-2180/320-2730 | 320-1820 | 2000-12000 |
| Spindle taper | MT3 | MT2 | MT3 | B10 |
| Dimension of worktable surface (mm) | 380*400 | 300*320/265*285 | 380*400/330*330 | / |
| Motor (kw) | 1.5(6P) | 1.1(6P)/0.75(4P) | 1.5(6P) | 0.37(2P) |
| Net weight (kg) | 225 | 170/145 | 310 | 55 |
| Packing dimension (mm) | 1040*640*1510 | 990*560*1400/850*540*1280 | 1040*640*2050 | 640*350*580 |
FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine and Bench Auto Feed Drilling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.
