Low Voltage 0.6/1kv 4 Core 4X240mm 4X240mm2 4cx240mm2 XLPE/PVC LV Copper Power Wire Cable
| US$2.00-10.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
LV-YJV-4
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Copper Conductor
Certification
ISO, CCC, CE, VDE
Model
YJV
Brand
Huadong
Product Name
4 Core Cable
Rated Voltage
0.6/1kv
Armour
Swa, Sta or Non Armoured
Size
1.5mm-800mm2
Other Cores
1 2 3 5 Cores
Standards
Ieca, BS, DIN,GB Ect
MOQ
100m
Warranty
100% Qualified
Sample
Available
Color
Black/Blue or Others
Price
Get Within 12 Hours
Transport Package
by Wooden Drum
Specification
by meters
Trademark
huadong
Origin
China
HS Code
8544492100
Production Capacity
15 Million Km
Product Description

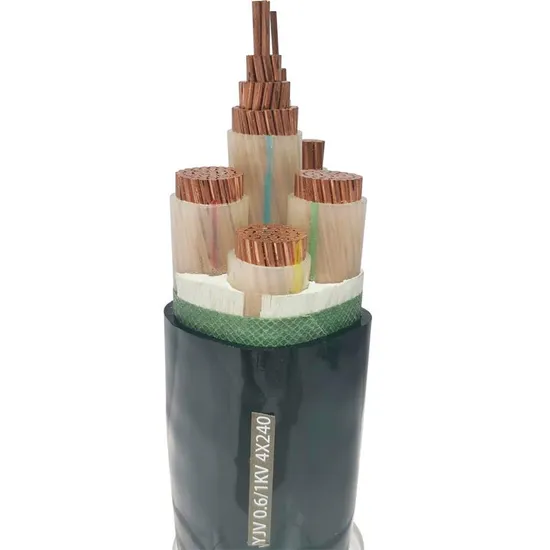

Product DescriptionFactory wholesale best quality copper power wire 4cx240mm2 xlpe/pvc lv cable
Conductor: Stranded Copper
Insulation/Jacket: XLPE/PVC
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-800mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.We can customize
the size according to your requirement
| HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR Copper or aluminium stranded(Class 2) conductors according to lEC 60228 | |
| HIGH RESISTANCE PVC/XLPE INSULATION Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation | |
| UV RESISTANCE & FLAME RETARDANT PVC JACKET Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1 | |
| CUSTOMIZED DESIGNS Available in Armoured/Non-armoured and Shielded/Non-shielded constructions |
| Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Current Rating Laid Direct |
| mm² | mm | kg/km | mm | amp |
| 4 x 2.5 | 7/0.53 | 351 | 12.88 | 32 |
| 4 x 2.5 | 7/0.67 | 429 | 14.43 | 42 |
| 4 x 6.0 | 7/1.04 | 670 | 17.87 | 69 |
| 4 x 10 | 7/1.35 | 998 | 20.1 | 92 |
| 4 x 16 | 7/1.70 | 1,272 | 22.4 | 119 |
| 4 x 25 | 7/2.14 | 1,940 | 27 | 152 |
| 4 x 35 | 7/2.52 | 2,390 | 30.1 | 182 |
| 4 x 50 | 19/1.78 | 2,925 | 31.5 | 217 |
| 4 x 70 | 19/2.14 | 4,200 | 37.4 | 266 |
| 4 x 95 | 19/2.52 | 5,335 | 40.9 | 319 |
| 4 x 120 | 37/2.03 | 6,925 | 46.6 | 363 |
| 4 x 150 | 37/2.25 | 8,200 | 50.2 | 406 |
| 4 x 185 | 37/2.52 | 9,975 | 55.8 | 458 |
| 4 x 240 | 61/2.52 | 12,700 | 62.5 | 529 |
| 4 x 300 | 61/2.85 | 15,275 | 67.4 | 592 |
| 4 x 400 | 61/3.20 | 19,875 | 77 | 667 |
Quality Inspection
Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane Cables and Other Special Use Cables.
