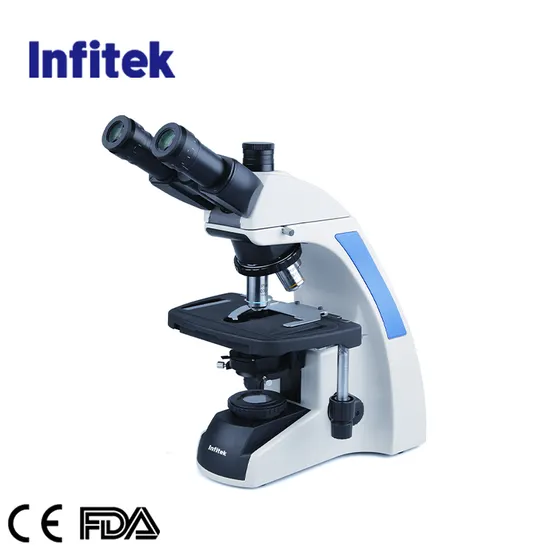

Infitek 40X-2200X Binocular Optical Biological Microscope

Product Description

Infitek 40X 100X 200X 400X 1000X Binocular Optical Biological Microscope Specification

Model	MSC-B203T
Optics	Infinity Optical System
Observation Tubes	Seidentopf binocularhead/Seidentopf trinocularhead, 50-75mm
Viewing Head	Seidentopf head,inclined at 30°,360° rotatable
Optical Coating	Transmittance ≥ 95%
Eyepiece	Wide field eyepiece WF10×22mm
Objective	Infinite plan achromatic objective: 4X, 10X, *20X, 40X, 100X
	Flour semi-apo objective: 4X, 10X, 20X, 40X, 100X
	Infinite plan phase objective: Ph10X, 20X, 40X, 100X
Nosepiece	Quadruple nosepiece / *Quintuple nosepiece
Stage	Double layers mechanical stage 210×150mm / 75×50mm
Condenser	Abbe condenser N.A.1.25 with iris diaphragm & filter
Focusing	Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm
Illumination	LED illumination, brightness adjustable
Electricity	100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm)	590*350*360
Gross Weight (Kg)	9
*Optional	Phase contrast kit;Drak field attachment; Microscope camera (Standard imaging software) / Win 10 Pad / Digital display

Packaging & Shipping
Certifications
Company Profile
FAQ Q: How about quality of the goods?
A:
All the running products comply with CE standards. Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch. Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A: Timely reply to pre-sales enquiries Real-time update of manufacturing and shipment status Contracted third-party maintenance company in over 60 countries Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
