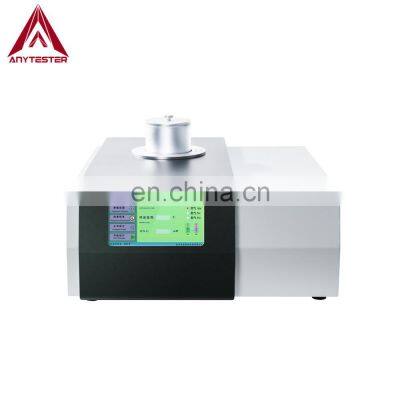

Differential Scanning Calorimeter (DSC) With LCD Display Touch Screen Operation

Product Description

Product Description
Product DescriptionAT451 Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc. Principle:The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programme under a specified atmosphere. Specification Model AT451DSC range 0~±500mWTemperature range RT~800℃, air cooling (standard configuration)Heating speed 1~60℃/minTemperature resolution 0.1℃Temperature fluctuation ±0.1℃Temperature repeatability ±0.1℃DSC resolution 0. 05μWDSC accuracy 0.05μWDSC sensitivity 0.05μWTemperature control mode Heating up, keeping temperature, cooling down (program control)Display mode LCD touch screen Data interfaceUSBPower supplyAC220V, 50HzFuturesMachine operation interface★ LCD display, touch screen operation.★ Chinese or English operation system can be selected.★ Main machine control and software control, friendly The back of machine★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.★ Full equipped with accessories, convenient and easy to test.Flow meter★ With gas flow meter, accurate to control the gas flow.★ Suitable for solid, powder and liquid samples, except gas sample. ★ Small furnace, high accuracy of temperature control, the temperature can be RT~800℃. Also, liquid nitrogen cooling system can be optional, the temperature can be -100 ~ 800℃ or -20 ~ 600℃.Test interface for DSC test★ Two user interface on software, one is for DSC test, the other is for OIT test.DSC-Temp curve for melting point test★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve.Packing & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
