Hydraulic High Efficiency Customized 1 Ton Mini Excavator China Digger
| US$3,800.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
10D
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
1.5 Km/H
Maximum Digging Height
2610 mm
Maximum Digging Depth
1650 mm
Max Digging Radius
2850 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Koop
Power
7kw/3000r/Min
Machine Weight
1000kg
Transport Package
Packed in Wooden Case
Specification
2775 * 930 * 2219mm(L*W*H)
Trademark
MDL
Origin
China
Product Description

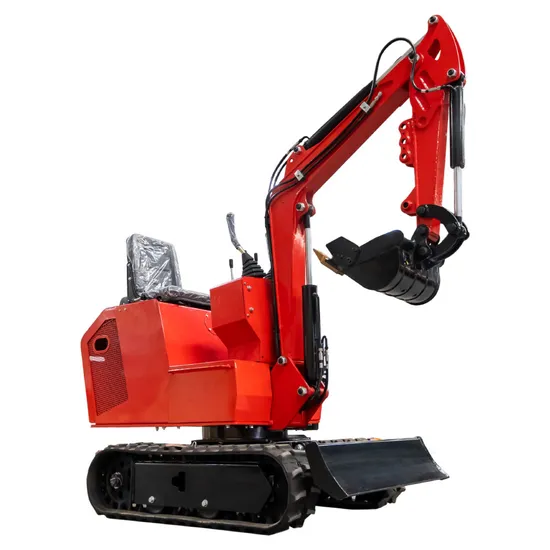

1 ton Excavator (10D)
What can we offer?
1.EPA/CE,ISO certificate.
2.Optional function: Boom swing.
3.Color can choose Red, Yellow, Blue,
accept customized.
Product Parameters
| Performance Parameter | |
| Weight | 1000 kg |
| Digging bucket capacity | 0.025 cbm/120kg |
| Bucket width | 380 mm |
| Engine | KOOP |
| Optional Engine | BRIGGS & STRATTON YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 7kw/3000r/min |
| Main pump | G5-6 |
| Displacement | 6.8 ml/r |
| Swing motor | SANYANG |
| Traveling motor | SANYANG |
| Travel speed | 1.5 km/h |
| Main Demensions | |
| Overall dimension( L * W * H) | 2775 * 930 * 2219 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230 mm |
| Platform ground clearance | 380 mm |
| Platform back turming radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Operating Range | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of blldozer blade | 255 mm |
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
