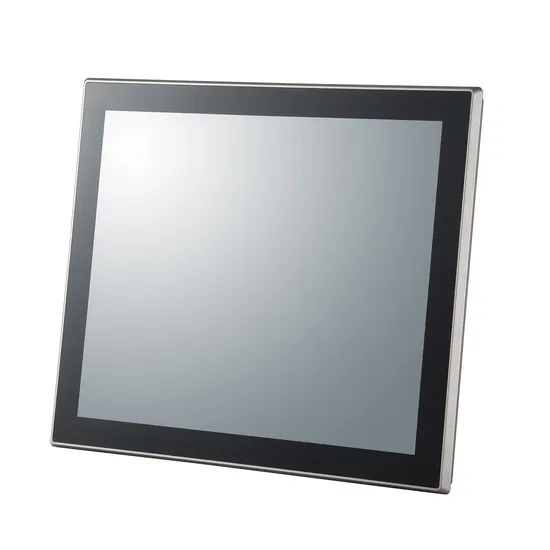

Premium 17-Inch Industrial Touch Panel PC with Multi-Touch
| US$365.00-442.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC17
CPU Type
Intel Celeron J4125
Hard Disk Rack Type
Board Type
Screen Size
16-20′′
System Expansion Slot
14 Slot
Touch Screen
Touch Screen
Type
IPC
Memory
8g
Storage
128GB
Touchscreen Type
Project Capacitive Touch
IP Grade
Front Panel IP65
Temperature Range
-20 to 70 Celsius
Warranty
2 Years Warranty
Certificate
CE, FCC, RoHS
Installation
Wall-Mounted
Power Supply Type
Adapter
Rack Unit
All in One
Transport Package
Carton
Specification
50x40x18cm/pcs
Trademark
Sihovision
Origin
China
HS Code
8471414000
Production Capacity
5000piece/Month
Product Description
Aluminium 17 inch Embedded 10 Point Multi Touch Industrial PCAP All in one touch panel pcMain Products
Feedback
Product Description Features:
1. Cordless motherboard design, high-end industrial panel PC.
2. Intel Celeron J4125/J6412 or Intel Core 8th/10/11th Gen of i5/i7, J4125/J6412: DDR4 SODIMM x1; Core 5/i7: DDR4 SODIMM x2.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. LCD+HDMI dual display, synchronous/asynchronous mode
7. Full flat touch screen, low power consumption, fanless.
8. 9V-36V Wide Voltage.
9. High performance motherboard, 7x24 continuous operation.
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8260U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8365U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.1 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8565U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.6 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8569U 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4 GHz, Turbo 4.2 GHz, 8 MB Cache, Fanless |
| CPU Optional | Intel® Core i7-1165G7, 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 12 MB Cache, Fanless |
| CPU Optional | Intel® N100, 4 Cores, 4 Threads, Base 0.8 GHz, Turbo 3.3 GHz, 6MB Cache, Fanless |
| Memory | J4125: 1x DDR4 SODIMM, Max 8G DDR4 J6412/N100: 1x DDR4 SODIMM, Max 16G DDR4 Core i5/i7: 2x DDR4 SODIMM, Max 64G DDR4 |
| Storage | 1 x M.2 2242/2260/2280 SATA, 1 x SATA(2.5'' SATA ) , 1 x M.2 2280 NVME |
| Hard Drive Capacity | 128GB, 256GB, 512GB, 1TB, 2TB, 4TB, SSD, 500GB, 1TB, 2TB, 4TB HDD Optional |
| Network | 2x 2.5 GbE RJ45 Intel i225V (4 x 2.5GbE RJ45 Intel I225v Optional) |
| Wireless Network | WIFI/Bluetooth Optional |
| I/O Interface | 4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th generation intel Core i5/i7) |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 1x HDMI/Audio Line-out/ Power Button | |
| 1 x Extended IO: 4x RS232(4x3 wire COM3&COM4&COM5&COM6), GPIOx10, 1x Remote Switch | |
| Expansion slot | M.2 3042/3052 3G/4G/5G Module, onboard SIM Card Slot |
| M.2 2230 WiFi Bluetooth | |
| Watchdog timer | 1 to 65535 seconds programmable setting |
| Operation System | Support Windows® 10/11, WES 10, LINUX, etc. |
| Support | TPM 2.0 |
| Screen | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Working voltage | 9-36V DC Wide Voltage with 4PIN Aviation Connector |
| Other | |
| Material | Aluminum Alloy |
| IP grade | Front panel IP65 waterproof |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
Customized
Certifications
Company Profile
FAQ
Sihovision is based in China to support global marketing and we are looking for local distributors as our long term partners,Welcome to contact us!
