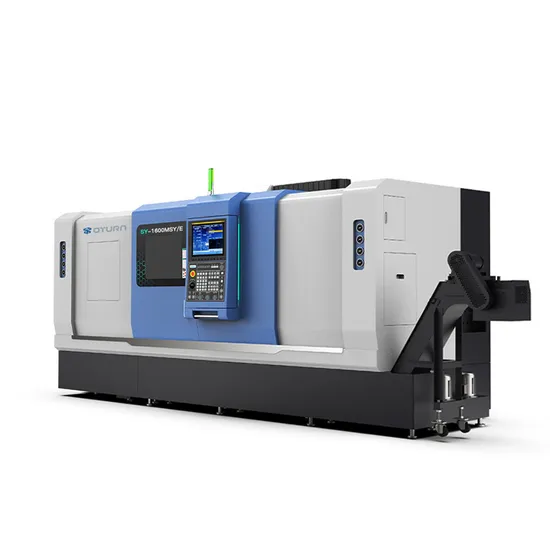

Special Turret CNC Dual Spindle Dual Turret Turning Lathe Esy1600msy

Product Description

Product Description
The machine adopts an optimized 30-degree stepped flat rail structure design, and has high precision, super rigidity and excellent cutting
stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, The high-strength roller rail design structure, the transmission system adopts the screw pre-tension design to improve the rigid performance, and the simple and elegant appearance conforms to the trend of the trend.
Main features of this machine tool:
1. The spindle unit is an independent sleeve type. The spindle system runs at 2500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
2. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by program or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various components can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Item	Name	Unit	ESY1600MSY
Travel	The largest diameter rotating bed	mm	Φ800
	Maxi. processing diameter	mm	Φ490
	Max.Swing Over Cross Slide	mm	Φ450
	Maxi. processing length	mm	1370
Main- Spindle Hydro cylinder Chuck	Spindle nose	type	A2-8
	Maxi. speed of spindle	rpm	2200
	Hydraulic Cylinder/Chuck	lnch	10″
	Spindle hole diameter	mm	Φ86
	Bar diameter	mm	Φ72
	Direct drive electric spindle power	kw	24
	Spindle direct drive motor torque	Nm	160-390
Sub-Spindle Hydro cylinder Chuck	Sub-Spindle nose	/	A2-6
	Max. speed of spindle	rpm	4300
	Hydraulic Cylinder/Chuck	/	8"
	Spindle hole diameter	mm	Ф66
	Bar diameter	mm	Φ52
	Direct drive electric spindle power	kw	18/22
	Spindle direct drive motor torque	Nm	105-227
X/Z/S axis feed	X/Z travel	mm	280/1470
	Y/S travel		120(±60)/1280
	X/Z/S axis rail specification	spes	45/45/35(Roller)
	X/Z/S shaft wire specifications	mm	4012
	X/Z/Y/S motor power	kw	2.9/2.9/1.8/2.9
	positioning accuracy	mm	±0.005
	repeat positioning accuracy	mm	±0.003
	X/Z/S axis moving fast	m/min	24/24/24
Servo drive Cutter	The cutter tower type	pcs	BMT65-12T
	Power cutter tower motor	Kw/Nm	5.0/47.7
	Maximum speed of	rpm	5000
	The knife block specifications	mm	25X25
	Circular cutter holder specification	mm	Φ50
	The adjacent tool change time	sec	0.2
	positioning accuracy	/	±2"
	repeat positioning accuracy	/	±1"
Mechanical Size	Machine size	mm	4300x2110x2100
	Machine Weight	kg	8500
other	Cutting fluid tank volume	L	300
	Cooling water pump power	W	750
	Volume of hydraulic unit box	L	40
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50
