Hot Sale Full Automatic Barbed Wire Mesh Making Machine

Product Description

Machine Introduction

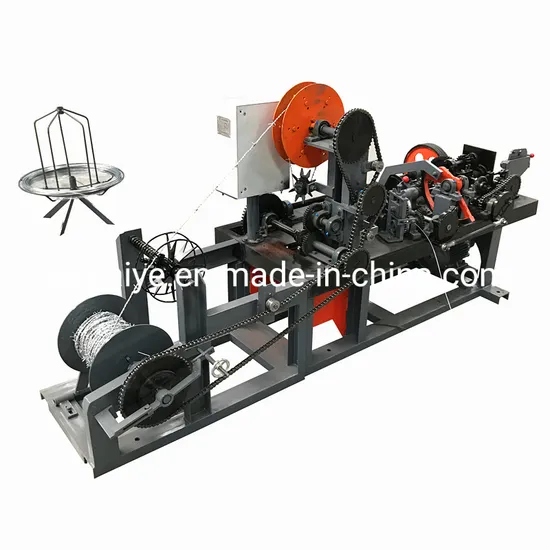

Double wire positive and negative twist barbed wire making machine (CS-C)The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine (CS-C), blade razor barbed wire machine.The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.This machine has the advantages of convenient operation, stable action, low noise and energy saving, and adopts advanced electronic counting control.the products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.

Machine Specification

Double wire positive and negative twist barbed wire making machine (CS-C)
Motor power	2.2 kw
Theoretical output	40kg/h
Machine weight	1080 KG
Barbed Distance	3'(7.5cm) 4'(10cm) 5'(12.5cm) 6'(15cm)
Producing speed	3'(540m) 4'(720m) 5'(900m) 6'(1080m)
Line wire diameter	1.6-2.8 mm
Barbed wire diameter	1.6-2.4 mm
Main drive shaft speed	402 r/min
Overall dimension	3000*1100*1300 mm

Mechanical Type
Machine Features

Feeding wheel. The surface of the feeding wheel has been specially treated, which is durable. It can smooth the wire and reduce faults.

Twisted head. The screw thread system has the advantages of simple structure, convenient operation and easy replacement of twisted head.

Electric box. There are start button, stop button and emergency stop button on the electric box. The counter can set the output automatically.

Mechanical parts. The mechanical parts are made of alloy steel to ensure the long-term operation and overall service life of the machine.

Traverse device. Traverse device can automatically move the position to make the take-up more uniform and beautiful.

Take up reel. Take up reel can be customized according to customer requirements, including the size and diameter of the reel.

Company Information

Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Factory workshop.
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D EPS panel welding machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine,wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine .

Our service
Certifications
Why choose us
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of originetc, your customs clearance will be no problem.

If you are interested in wire mesh machine,
please contact me now
