Rubber Tile Molding Machine for High-Quality Flooring Production

Product Description

Discover our comprehensive range of innovative machinery for crafting exquisite rubber flooring tiles. Our portfolio includes the state-of-the-art rubber mat vulcanizer machine, the advanced rubber floor molding press machine, and the efficient rubber plate vulcanizing curing press machine.
Supply Range
1. Rubber/Tire Granules Mixer: Designed to expertly blend granules with adhesive, setting the stage for the vulcanization process and ensuring optimal results.
2. Pigment Mixer: Essential for creating vibrant and colorful tiles, this mixer harmoniously combines pigment with adhesive for outstanding color distribution.
3. Rubber Tile Press Machine: Choose from our three top-selling models to meet your production needs.
3.1. Model One: XLB-550*550*4/50Ton Rubber Tile Press. Primarily used for the robust production and solidification of smaller rubber tiles, including
500*500mm size tiles.
3.2. Model Two: XLB-1100*1100*1/120Ton Rubber Tile Press. Expertly engineered for solidifying rubber tiles of
both 1000*1000mm and 500*500mm sizes, offering versatile production capabilities.
3.3. Model Three: XLB-1100*1100*1/120Ton Rubber Tile Press. Specially designed to solidify rubber tiles for
both 1000*1000mm and 500*500mm sizes with precision.This model boasts an innovative feature that automatically ejects tiles from the mold, streamlining the production process.

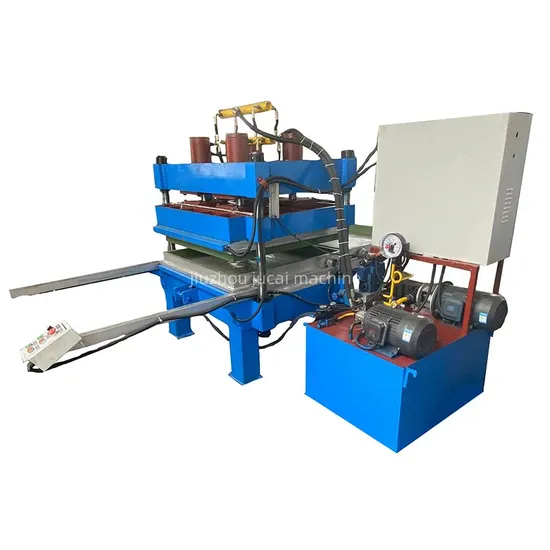

Machine Display
Product Parameters

model	XLB-550*550*4/50Ton	XLB-1100*1100*1/120Ton
mold closing force	50 ton	120 ton
heating plate size	550*550mm	1100*1100mm
working layer	4	1
plate clearance	150mm	150mm
plunger diameter	200mm	180mm*4
plunger stroke	600mm	150mm
heating	electrical	electrical
max temperature	300	300
cotrol	automatic	PLC
gross weight	about 2500kg	5000 kg

Company Profile
1. Is your company a trading entity or a manufacturing facility?
We are a dynamic Factory + Trade integration, boasting 30 years of expertise in rubber machine design and production.
We also welcome OEM partnerships.
2. How can I select the most suitable products?
Our expert team will provide the most tailored recommendation based on your specific product needs and specifications.
3. Do you offer customization services?
Absolutely! We not only deliver standard machines but also craft bespoke machines to your specifications. Share your requirements with us, and we'll strive to fulfill them.
4. What is your warranty policy?
Our standard warranty lasts one year. During this period, we offer technical support and part replacements.
If necessary, our engineers can visit your location for enhanced service.
5. How is the machine packaged, and is it protected during transportation?
Our machines are securely packed in standard export wooden boxes, ensuring they remain undamaged. We've successfully shipped many testing machines overseas without incident.
6. What is the order process?
The order process includes Inquiry, Quotation, Communication, Order Confirmation, Deposit Payment, Production, Testing and Debugging, Balance Payment, Packing, Delivery, and Customer Reception, followed by After-Sale Service.
