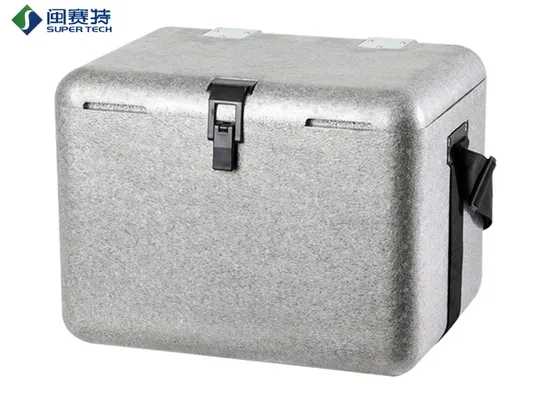

13L/28L/33L/156L/233L Portable Fishing EPP-VIP Insulated Box Portable Wholesale Insulated Box Picnic Cooler Box

Product Description

Product Introduction
With the patented technology, the EPP foam box is combined with VIP insulation, PU foamed Vacuum insulated panel, which has the characteristics of lightweight and excellent insulation performance. It is essential and good choice for top grade seafood, milk, outdoor picnic. Besides, as passive temperature controlled packaging system, it can also be used in vaccines, pharmaceuticals, insulin, blood products, Human Albumin, clinical test specimens, health products, fresh, ice cream, chocolate and other products storage and transportation.
Product Properties
1. Comply with GSP Regulation
2. Good Insulation Performance: more than 120h duration time
3. Cost Effective: under the same insulation requirements, less PCM required
4. Good Insulation Stability: based on high efficiency vacuum insulation panel, the attenuation is slow
5. Good Strength: verified the test of falling, vibration, collision resistance
6. Energy Saving and Environment Protection: repairable and recyclable, environmental protection and pollution-free
7. Operating Environment:-30ºC~80ºC
8. Customizable Size: EPP Vacuum Insulated Box is required to open the mold
9. Duration Time:standard configuration>48h,72h,96h,120h(optional)
10. Insulation Range:optional(10~20ºC,2~8ºC,-1~3ºC,-15~-25ºC)
11. Optional Component:surface material, PCM, temperature display system, bluetooth printer, cloth bag, inner container
12. Universal designs, ideal for global distribution
13. Reuse and re-qualification program available to ensure thermal integrity and sustained performance

Box Type	Internal size(mm)	External size	Internal Volume	Box Weight	Box Thickness	Insulation Time(2~8ºC)	PCM Weight
STEPP-V13	309*188*221	395*274*307	13L	2.5kg	43mm	24~72h	2~6kg
STEPP-V28	414*284*244	500*370*340	28L	3.2kg	43mm	24~72h	2.6~8kg
STEPP-V33	505*275*270	601*371*366	33L	3.5kg	48mm	24~72h	3~8kg
STEPP-V156	630*550*450	760*680*580	156L	16kg	65mm	48~120h	8~26kg
STEPP-V233	720*600*540	850*730*670	233L	23kg	65mm	48~120h	11~34kg

Product Detail Show
Product Process
Product Packing&Delivery
Why Choose Us As the largest VIP panel manufacturer in China, our products are spreading all over China after ten years of development. Further, we have established long-term and stable cooperation with many world-top electronics manufacturers from America, Europe, Japan, Korea, Taiwan and so on. As the VIPs supplier of world top 10 best refrigerator brands such as Haier, Samsung, LG, Whirlpool, Bosch&Simens, Arcelik, Midea, Hisense, Thermo Fisher Scientific and so on, we are committed to offer VIPs with a good insulating performance. As to the raw material testing, the production of core material, composite film and getter material, vacuum packaging and testing of final product in the end, the whole process is completed in our own manufacturing base. Great efforts have been made by our quality control department to test the thermal conductivity of each VIP for ensuring its high quality. What's more, in order to manage historical data and build a quality tracing system of VIPs, we have established our own sample R & D department where records the data of quality tracing and parameter collection of our products over the past ten years. With the implementation of strict quality management system, our self-developed VIP products certified by REACH and ROHSSGS testing from SGS have passed the world's leading product testing and our factory has also passed ISO9001 and ISO14001. SuperTech VIP of excellent thermal performance,the K-value could be lower than 0.0020W/m.K,and the diameter of glass fiber dry core material meets the regulation of EU Directive 97/69/EC that diameter of glass fiber shall be ≥6μm. Of stable supplying ablity,the annual production of VIP is ≥10,000,000m2. All three main components of VIP are self-supplyed,including core material,laminated film ,
E-getter+N-getter . 100% inspection for each pc of VIP, sufficient qty of fast K-value testers and automatic manipulator testers could make sure quality of VIP before EXF. Competitive prices Super Tech is the listed company, the company business and operation is stable and of low trade risk. We provide good after-sales service with 7x24h online. Any requirement, please feel free to reach us out.
