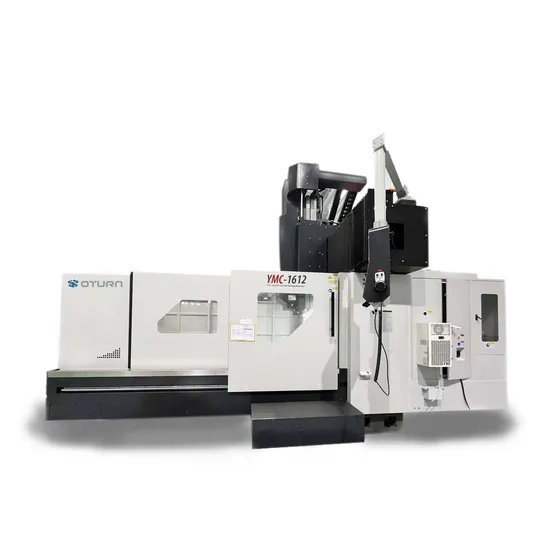

Oturncnc High Torque CNC Gantry Milling Machine Ymc1612 Manufacturer

Product Description

Product Description
High rigidity and long-term accuracy retention
The main components of the machine tool, including the base, workbench, column, spindle box, and saddle, undergo meticulous FEA finite element analysis. This ensures a design that is both optimized and lightweight while maintaining high rigidity. The spindle center's proximity to the guide rail surface and the minimized flipping torque significantly enhance processing stability. Crafted using resin sand molding and high-strength, top-quality cast iron, each component is subjected to a comprehensive heat treatment process that eliminates residual stress. Precision manual scraping ensures optimal structural rigidity throughout. Our extensive product line, complete with varied specifications, is paired with a flexible automated tool magazine and a vertical and horizontal tool-changing system, guaranteeing automated, efficient, and highly productive processing performance. The modular spindle design caters to diverse machining requirements, while the Y-axis roller-type linear slide rail combines the heavy cutting rigidity of a hard rail with the rapid, low-wear movement of a linear slide rail, greatly enhancing rigidity and control.
The three-axis system features roller guide rails from internationally renowned brands, delivering exceptional rigidity and dynamic accuracy. Taiwan-made, large-diameter grinding ball screws ensure smooth movement, low thermal elongation, and high precision within a compact structure. The screw support forms a stable, high-rigidity mechanical transmission system. The high-precision spindle is designed to provide consistent and reliable lubrication for the spindle bearings, while the standard spindle oil cooling system maintains the spindle's stability over extended periods.
Product Parameters

DESCRIPITION	UNIT	YMC-1612
Travel X/Y/Z	mm	1600/1200/580
Table Size	mm	1600×1200
Max.Table Load	kg	2000
Distance from Spindle Nose to Table	mm	150-730
Distance between Column	mm	1380
Spindle Tapper		BT40
Spindle RPM		12000
Spindle P.R	kw	11/15
G00 Feed Rate X/Y/Z	mm/min	15000/15000/ 7500
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	10500
Collant Tank Capicity	liter	240
Lubrication Tank	liter	4
Power Capicity	kVA	25
Air Pressure Request	kg/cm²	5-8
ATC Type		Arm type/Chain type
ATC Tapper		BT40
ATC Capicity		24(32)
Max.Tool dia./length	mm	φ78/300
Max.Tool Weight	kg	8
Machine size	mm	4200*2950*3000
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	1.55
