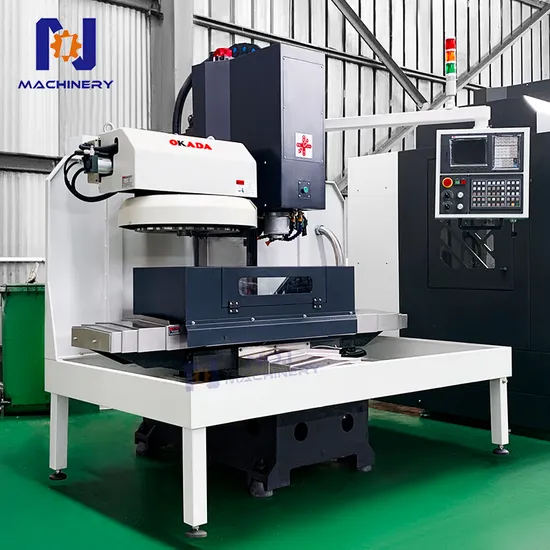

Xk7130 New CNC Milling Machine CNC Bed Type Milling Machine for Metal Processing

Product Description

Product Description
The main performance characteristics :
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the lead screw, and prolongs its service life.
Product Parameters

Item Model	Unit	XK7130
Size of worktable	mm	800*300
T-shaped groove for table	mm	3-16*80
Maximum load on table	kg	200
X/Y/Z rail width	mm	30/30/30
X/Y/Z ball screw specification	mm	3010/3010/3010
X/Y/Z Axis stroke	mm	600*360*450
X/Y/Z motor torque	NM	6/6/10(Contracting brake)
Spindle face to table position	mm	120-520
Distance from Spindle Center to column	mm	380
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	48/48/48
Spindle end taper/diameter	mm	BT40-120
Spindle motor power	kw	5.5
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Hat/Disc
The capacity of knife storage	tools	16
Maximum tool diameter/weight	mm/kg	78/90/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	2800
External dimensions	mm	2000*1800*2450

Detailed Photos

CONTROL SYSTEM Standard: GSK / KND control Optional : Siemens , FANUC, Syntec ect.

TAIWAN PRECISION SPINDLE Spindle taper is BT40; Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm

HARD/LINEAR GUIDE RAIL Standard : Hard Guide Rail, Optional : Taiwan HIWINLinear Rail.

TAIWAN ATC Standard : 16 Arm tool magazine, 24 arm type ATC is optional.
