Factory Area Efficient Brick Production Unit

Product Description

Comprehensive Information Model Number
QT5-15
Model
QT5-15
Pallet Size
1150*550mm
Color Options
Customizable
Voltage Requirements
380/220/410V
Cycle Time
15 seconds
Transport Packaging
40HQ Container
Brand
Tengfei
Country of Origin
China
HS Code
84748020
Production Volume
11,520 pieces
Product Overview
Product Description

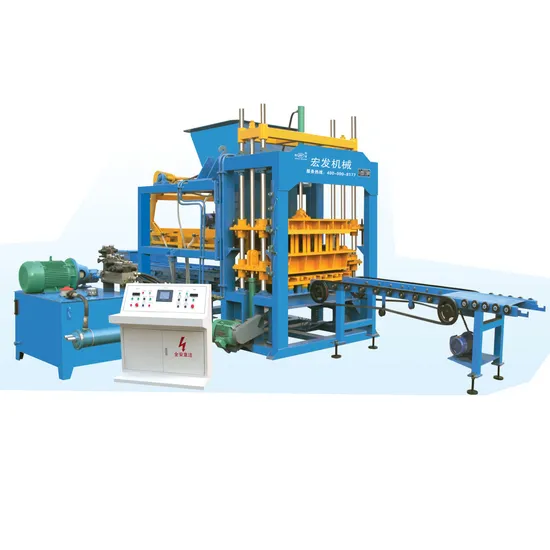

Discover the high-quality QT5-15 Concrete Kerb Block Machine, now available at factory prices in Mozambique. Engineered for excellence, our hollow brick making machinery promises unmatched performance and durability.
The QT5-15 is an advanced automatic block making machine, designed to produce a variety of hollow and solid bricks with ease. By simply changing the mold, you can effortlessly switch between different brick types.
Enhance your production with paver blocks by integrating our pigment feeder. The comprehensive production line features the QT5-15 host machine, complete with a state-of-the-art controller and robust hydraulic station.
This extensive setup includes a stack machine, the powerful JS500 mixer, an 8-meter belt conveyor, the efficient PLD1200 batching machine, and a high-speed pallet feeder machine.
Production Capacity:

Size	pcs/mold	pcs/hour	pcs/day
400*200*200mm	5	1200	9600
400*150*200mm	7	1680	13440
400*100*200mm	10	2400	19200

Advantages of Our Machine:
1. Our machine features a sophisticated PLC controller that automates operations, significantly reducing labor costs and enhancing efficiency.
2. Weighing at a robust 5.8T, our machine boasts a stronger structure compared to other suppliers, ensuring longevity and reliability.
3. Each mold undergoes heat treatment, greatly extending its service life and maintaining consistent quality.
4. Equipped with two powerful 7.5KW vibration motors and a vibration box, our machine shapes bricks with unmatched speed and strength.
5. The innovative hydraulic design minimizes operational issues, offering a more reliable and efficient performance than traditional mechanical designs.
6. Our fast belt conveyor system ensures swift transfer of materials from the hopper to the feeder cart, minimizing waste and maximizing productivity.


Product Parameters
QT5-15 Block Making Machine
1. Dimension: 6000*2600*3000mm
2. Weight: 5.8T
3. Pallet Size: 1150*550*22mm
4. Shaping Method: Vibration and Hydraulic
5. Shaping Cycle: 15s
6. Power: 31.25KW

Stack Machine
1. Dimension: 1.5*1.5*1.8m
2. Weight: 1.2T
3. Power: 2.25KW

JS500 Mixer
1. Dimension: 2.3*1.8*2.6m
2. Weight: 3T
3. Lift Motor: 5.5KW
4. Mix Motor: 18.5KW
5. Water Pump: 1.1KW
PLD1200 Batching Machine
1. Dimension: 9.6*1.7*2.3m
2. Weight: 2 Tons
3. Power: 12KW
4. Capacity of Scale Hopper: 1.2m³

Block sample
Our advanced machine offers unparalleled flexibility, able to craft a diverse array of brick designs simply by changing the mold. Each mold can be custom-made to align with your unique specifications.
