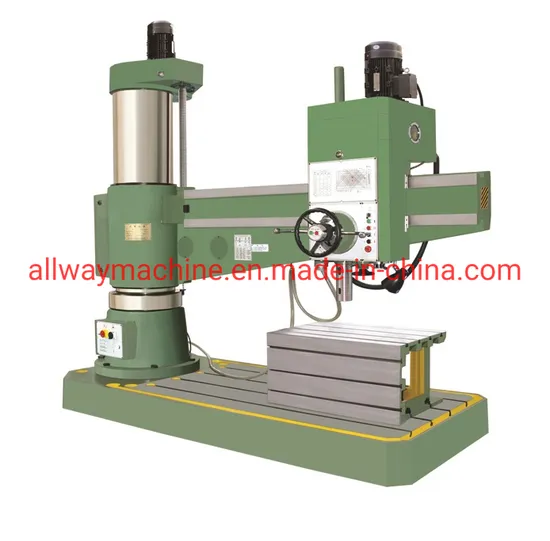

Hydraulic Radial Drilling Tapping Machine
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3080X20A
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Hydraulic
Drilling,Tapping
Transport Package
W/Case
Specification
80
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year
Product Description
Configuration features:Hydraulic clamping Hydraulic variable speed
Hydraulic pre-selection Mechanical and electrical double insurance
Product main technical specifications:
| specifications | Units | Z3080*20A | Z3080*25A |
| Max. drilling diameter | mm | 80 | 80 |
| Distance from spindle nose to table surface | mm | 350-1570 | 350-1570 |
| Distance between spindle axis and column surface | mm | 510-2000 | 480-2500 |
| Spindle travel | mm | 400 | 400 |
| Spindle taper | MT | 6 | 6 |
| Spindle speeds range | (r.p.m) | 16-1600 | 16-1600 |
| Spindle speed step | 16 | 16 | |
| Spindle feeding range | (r.p.m) | 0.04-3.20 | 0.04-3.20 |
| Spindle feeding step | 16 | 16 | |
| Rocker rotary angle | +/-90° | +/-90° | |
| Main motor power | kw | 7.5 | 7.5 |
| Movement motor power | kw | 1.5 | 1.5 |
| N/W | kg | 7000 | 9500 |
| Overall dimensions(L*W*H) | mm | 2980*1250*3300 | 3500*1450*3300 |
