Waste Cotton Double Box Hydraulic Vertical Baler Can Cotton Polyester Bale Presser on Sale

Product Description

Components

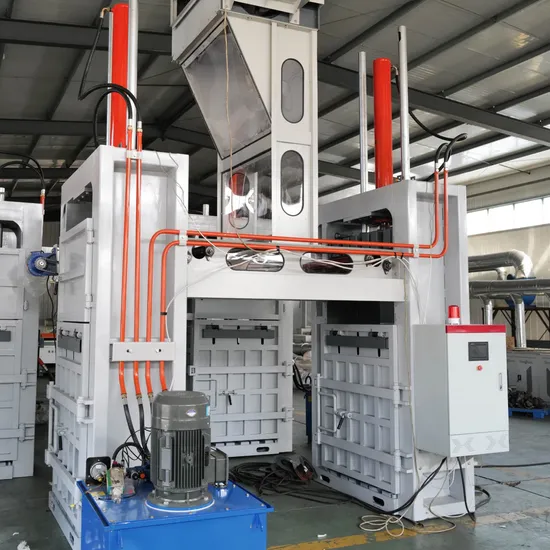

The bale machine is hydraulicaly driven with vertical structure, which is composed of conveying fan,condenser, machine body, hydraulic device and automatic control computer.The machine has two baling units and each unit is able to open from three directions, which ensures the bale to be taken out from the machine easily.
Usage characteristics
With compact structure, stable running performance,automatic control computer, easy installation, easy operation and maintenance, this bale machine is energy saving and cost effective.
Usage characteristics
This machine is designed as per our customers requirements, having the characteristics of high automation, labor and time saving, and also environmental. It's mainly used in the package of raw cotton, waste cotton in the cotton mill and ginning plant. It's also can be use for packing some scraps and other soft goods. This machine use automatically hydraulic packingdevice so it's easy to operate.
Main technical parameters

Specifications	T100	T120	T160
Hydraulic cylinder diameter	195/100	215/125	240/145
Power	11KW	15KW	18.5KW
Pres sure (KN)	500KN	600KN	800KN
Packing size	L950+W650+H1000-1200	L950*W650*H1000-1200	L950*W650*H1000-12000
Packing weight	160-200kg	160-220kg	160-250kg
Compression time	30js	30js	30js
Feeding method	Automatic feeding	Automatic feeding	Automatic feeding
Hydraulic station size	L1100+W800+H900	L1100+W800+H900	L1100+W800+H900
Dimensions of Machine	L3400*W2150+H4300	L3400*W2150+H4300	L3400*W2150+H4300
Weight	4500kg	4800kg	5200kg
single box hydraulic baler
Hydraulic cylinder diameter		180-160-100(one cylinder)
Power		7.5kw
Pressure (KN)		600KN
Feeding gear motor power.		75KW2 sets (automatic feeding)
Cotton condenser feed reducer motor		0.75KW1 set (without dust filter with 3KM fan)
Compression time		30js
Packing size		L950mm*650mm*h1000-1200mm (Adjustable)
Packing weight		180kg-230kg/bag
Feeding type		Conveyor belt feeding and fan feeding
Bales weight		400-600kg/hour
Dimensions of Machine		L1800mm*W2100mm*H4300mm
Weight of Machine		Approx. 2850kg
Hydraulic station dimensions.		1000*700*900mm
Control System		Electricity for PLC touch screen photoelectric control system or button control
