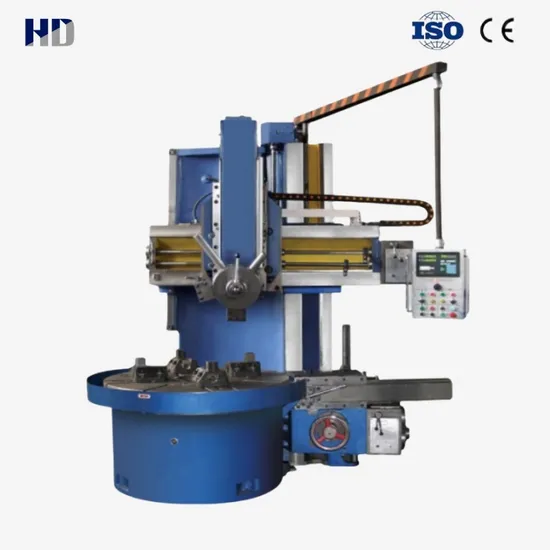

Stable Single-Column Lathe with Enhanced Durability
Basic Info.
Model NO.
C5120
Type
Vertical Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Cutting Dia.
2000mm
Working Table Dia.
1800mm
Max Loading
8t
Speed Range
3.2-100rpm
Step Range
16 Steps
Max. Torque
25kN.M
Feeding Range
0.8-86mm/Min
Feed Steps
12 Steps
Cutting Force
20kN
Cross Beam Travel
850mm
Beam Lifting Speed
350mm/Min
Tool Bar Section Size
40*40mm
Feed Motor Power
1.3/1.8kw
Main Motor
30kw
Machine Weight
17t
Transport Package
Wooden Cases
Specification
2830*2670*3010mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
336.00cm * 305.00cm * 352.00cm
Package Gross Weight
17010.000kg
Product Description
Product PictureSpecification Parameter
| Specification | Unit | C5112 | C5116 | C5120 | C5123 | C5126 | |
| Max.cutting diameter of vertical tool post | mm | 1250 | 1600 | 2000 | 2300 | 2600 | |
| Max.cutting diameter of side tool post | mm | 1100 | 1400 | 1800 | 2000 | 2400 | |
| Max.cutting height | mm | 1000 | 1000/1200/1400 | 1250 | 1350 | 1600 | |
| Workingtable | diameter | mm | 1000 | 1400 | 1800 | 2000 | 2250 |
| max. loading | t | 3.2 | 5 | 8 | 8 | 10 | |
| speed range | rpm | 6.3-200 | 5-160 | 3.2-100 | 3.2-100 | 2-63 | |
| step range | step | 16 | 16 | 16 | 16 | 16 | |
| max. torque | kn. m | 17.5 | 25 | 25 | 25 | 35 | |
| Vertical tool pot | feeding rang | mm/min | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 |
| feed steps | step | 12 | 12 | 12 | 12 | 12 | |
| cutting force | kn | 20 | 25 | 25 | 25 | 25 | |
| vertical travel | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 1000 | |
| horizontal travel | mm | 700 | 915 | 1200 | 1300 | 1500 | |
| swing angle | ° | ±30 | ±30 | ±30 | ±30 | ±30 | |
| Side tool post | feed range | mm/min | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 |
| cutting force | kn | 20 | 20 | 20 | 20 | 20 | |
| vertical travel | mm | 900 | 900 | 900 | 900 | 900 | |
| horizontal travel | mm | 630 | 630 | 630 | 630 | 630 | |
| Vertical (side) turret rapid travel speed | m/min | 1.8 | 1.8 | 1.55 | 1.55 | 1.55 | |
| Cross beam travel | mm | 650 | 650/850/1050 | 850 | 1050 | 1250 | |
| Beam lifting speed | mm/min | 350 | 350 | 350 | 350 | 320 | |
| Tool bar section size | mm | 30*40 | 30*40 | 40*40 | 40*40 | 40*40 | |
| Feed motor power | kw | 1.3/1.8 | 1.3/1.8 | 1.3/1.8 | 1.3/1.8 | 1.3/1.8 | |
| Main motor | kw | 22 | 30 | 30 | 30 | 37 | |
| Machine weight | t | 8.5 | 12.4/14/14.8 | 17 | 18 | 26/28 | |
| Overall dimension(L*W*H) | mm | 2360*2280*2800 | 2830*2670*3010 | 3200*2800*3250 | 3210*2850*3300 | 3300*4000*3500 | |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
