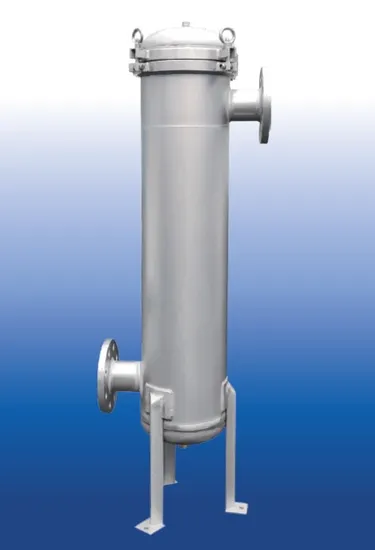

Stainless Steel 304 Single / Multi-Round Bag Filter Szie 1 / Size 2with Full Sizes Available

Product Description

Description
N Series - Bag Filter Housings from Darlly Filtration are offered in a range of sizes and port options to meet your needs for liquid filtration. Our housings are fabricated using best-practice, industry leading production methods to deliver high quality and best value. These are an excellent choice for liquid filtration covering a wide range of applications: food and beverage, fine chemicals, process fluids. Our single-bag and multi-bag housings can be customized depending on the user's specific needs.

Features
- Housings are designed with a sanitary housing style. Internal finish Ra<0.6μm as preferred for potable water and food/beverage production.
- The three-point clamping closure ensures excellent sealing performance.
- The swingbolt closure with eyebolts allows for easy handling and servicing.
- Strengthened filter baskets are rugged and long-lasting.
Applications
- Pre-filtration of RO systems; Bottled water production
- Filtration of process water, condensate water, cooling water, & waste water
- Chemical industry filtration of acids, alkaline liquids, & organic solvents
- Energy industry condensate & cooling water
Specifications

Material	Shell Options	304 or 316L Stainless Steel
	Eyebolts	304
	Legs	304
	Seal Materials	Silicone, FKM, EPDM, Encapsulated FKM
Surface Finish	Finish Process Options	Passivated, Electropolished, Mech. Polished, Sand blasted
	Polish Quality	Internal: Ra ≤ 0.6μm External: Ra ≤ 0.8μm
Operating Conditions	Design Pressure	1.0MPa (150psi)
	Max. Operating Temperature	150ºC(302°F)
Connection	Shell Connection	Swing bolt closure
	Inlet & Outlet	Tri-clamp / Flange
	Gauge Port	M14*1.5 bottom

Ordering Information
