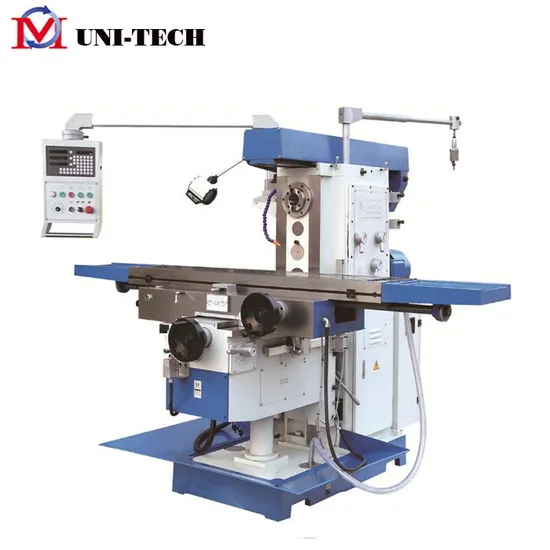

Universal Horizontal and Vertical Milling Machine
| US$8,800.00-9,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
XL6036
Structure
Horizontal
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
1325X360mm
Main Motor
5.5kw
Table Travel on X-Axis
750mm
Table Travel on Y-Axis
320mm
Table Travel on Z-Axis
460mm
Table Rapid Speed
1200/800/600mm/Min
T-Slot of Table
3-18-80
Table Feed
30-750/20-500/15-375
Spindle Speed
60-1800rpm
Arm Travel
500mm
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459590000
Production Capacity
80sets/Month
Product Description
Universal Horizontal and Vertical Milling MachineSpecification
| Specification | Unit | XL6036 XL6032 | XL6036C XL6032C | XL6036CL XL6032CL |
| Spindle taper | - | 7:24 ISO50 | ||
| Distance between spindle nose and table | mm | 20-480 | 20-470 | |
| Distance from spindle axis to arm | mm | 175 | ||
| Spindle speed range | - | 12steps 60~1800r.p.m | ||
| Table size | mm | 1325X360 1325X320 | 1600X360 1600X320 | |
| Table travel(X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30-750 / 20-500 / 15-375 | ||
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||
| T-slots(NO:/width/pitch) | mm | 3/18/80 3/18/70 | ||
| Arm travel | mm | 500 | ||
| Main motor power | kw | 5.5 | ||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
| Overall size | mm | 1800X2100X1870 | 2245X2100X1870 | 2520X2100X1870 |
| Net weight | kg | 2450 2400 | 2500 2450 | 2550 2500 |
Standard Accessories
| name | Specification Model | Qty |
| 7:24 middle set o | 7:24 ISO50/MS4 | 1set |
| Horizontal arbor assembly | Φ27 | 1 set |
| Horizontal arbor assembly | Φ32 | 1 set |
| Drawbar | M24 | 1 piece |
| Double-ended wrench | 13*17 | 1 piece |
| Double-ended wrench | 27*30 | 1 piece |
| Double-ended wrench | 36*41 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
| Q13 Series Machine vice | QB160 | 1 |
| sleeve | M24 | 2 |
| Washer | - | 2 |
Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
