High Speed Full Servo Super Absorbent Adult Diaper Machine Manufacturer
| US$300,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JWC-LKC-SV
Production Speed
150-400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
Adult Diaper Machine
Automatic Grade
Full Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
to Be Defined
Finished Product
Adult Diaper
Process
Paper Machine
Usage
Adult Diaper Machine
Type
Adult Diaper Machine
Computerized
Yes
Transport Package
Wooden Box for Diaper Machine
Specification
CE & ISO
Trademark
JWC diaper machine
Origin
China
HS Code
84418090
Production Capacity
20 Sets
Product Description
High Speed Full Servo Super Absorbent Adult Diaper Machine ManufacturerProduct Description

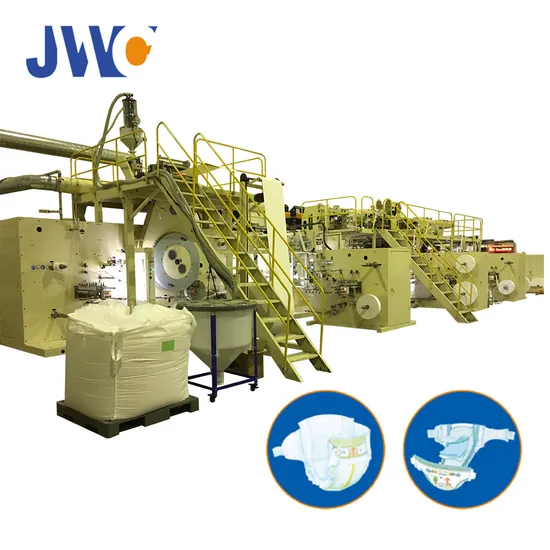

This I shape Adult Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This I sahpe Adult Diaper Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100% full automatic control.
| 1.Machine frame Reasonably solid square steel frame 2. Crusher system 3. 2 sets Fluff forming system 4. 2 sets SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue 8. ADL feeding, roll diameter φ800mm 9. Fluff core inner cut device 1 setadopt frame type structure, increase the cutter life, 10. Leak cuff unit 11. Hydrophilic nonwoven supply, roll diameterφ800mm 12. Magic tape material supply 13.Three pieces complex, two sides fixing unit, adhesion pressing 14.Bottom film supply 15. Frontal tape supply 16. elastic waistband supply 17.surface layer, absorption core, bottom film pressing | 18.product arc shape die cut 19.pressing unit(Y shape roller) 20.product vertical tri-fold 21.pressing unit(Y shape roller) 22.Product vertical folding 23.transmission unit 24.horizontal fold transmission unit 25.horizontal fold unit 26.product transmission unit 27. Auto rejection exit |
| 1 | Design speed | 300pcs/min |
| 2 | Stable working speed | 270pcs/min |
| 3 | Qualified rate | 97% exclude the wastage due to the glue applicators and materials splicing joint |
| 4 | Efficiency | 85% |
| 5 | installation capacity | 400KW |
| 7 | Electricity | 380V 5% 50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) |
| 9 | Air pressure | 0.6Mpa |
| 10 | Total weight | About 105tons |
| 11 | Machine size | 32*8*5.5 M(L*W*H) |
| 12 | Working space | 37*8*8 M (L*W*H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | 4sizes |
| 15 | Containers | 7X40HQ |
| Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | FIFE | USA |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | M7 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
Final products&raw materials
