Woodworking Automatic Machinery Steel Worktable Manual PVC Edgebander Edge Banding Machine
| US$3,000.00-4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WF60E
Type
Straight Line
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Panel Thinkness
10-60mm
Min.length panel
No Limited
Min.width panel
60mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
Voltage
380V or 220V
Power
8kw
Working Board Thickness
10~60mm
Working Board Width
> = 60mm
Working Pressure
0.6MPa
Auxiliary Roll
2pairs(4PCS)
Weight
1500kg
Transport Package
Wooden Box
Specification
4080*930*1600
Origin
China
HS Code
8465940000
Production Capacity
100sets/Month
Product Description

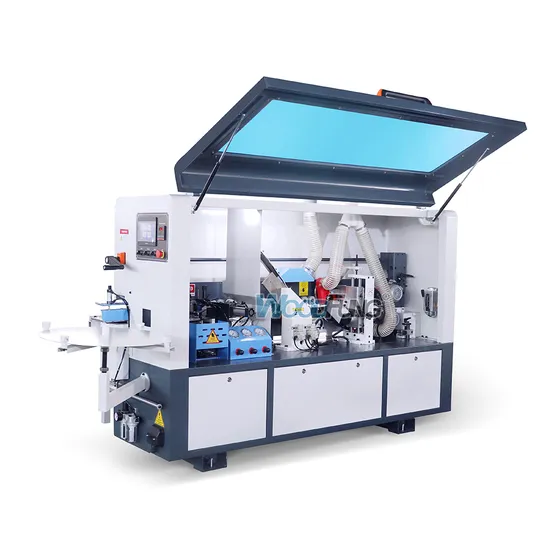

Products DescriptionEdge Bander Woodfung WF60E new type short length 2.15m full automatic edge banding woodworking machinery
WF60E full automatic edge banding machine corner rounding Woodworking Machinery
This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used
for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,edging,end
cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is
especially suitable for the factory producing board .
Main Material brand:DELTA Touch Screen/CHINT Electronic/DELTA PLC/solenoid valve AirTac/CSK guide/EASUN Cylinder
| Model | WF60E | WF360A | WF360B | WF360C | WF360YC | WF360D | WF360F |
| Motor power | 6.5KW | 7.4KW | 9.4KW | 8.5KW | 11KW | 19KW | 15KW |
| Panel width | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
| Panel thickness | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm |
| Edge band thickness | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm |
| Edge band width | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm |
| Feed speed | 18m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min |
| Working pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| size(LxWxH) cm | 230*75 *145 | 370*93 *160 | 450*93 *160 | 418*93 *160 | 500*93 *160 | 590*93 *160 | 610*93 *160 |
| WF60E | gluing,end cutting,fine trimming,and buffing, | ||||||
| WF360A | gluing,end cutting,fine trimming,scrapping and buffing | ||||||
| WF360B | gluing,end cutting,rough trimming,fine trimming,scrapping and buffing | ||||||
| WF360C | gluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing | ||||||
| WF360YC | pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing | ||||||
| WF360F | pre-milling,gluing,end cutting,fine trimming,corner rounding,scrapping, and buffing | ||||||
| WF360D | gluing,end cutting,rough trimming,fine trimming,corner rounding,scrapping and buffing | ||||||
