Stainless Steel U Shape Milk Chilling Tank for Milk, Juice

Product Description

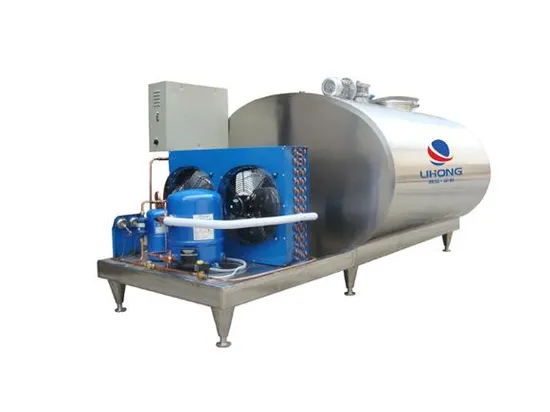

U Shape Milk Chilling Tank
App: Milk storage, milk collection
30º C ~4º C (less than 3 hours)
LH-U SHAPE MILK CHILLING TANK
1. Introduction:
LH U Shape Milk Chilling Tank is mainly used in preserving and storing fresh milk or other fresh liquid. It fully used the international advanced technology, adopts importing European Maneurop (non-fluorine) refrigerator and safety and protection system, imported advanced technique.
So it's the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry.
2. Tank part
Vol: 300L~20,000L
Material: SUS304
Isolation material: PU foam
3. Cooling system
Compressor: Maneurop
Refrigerant: R404A or R22
4. CHARACTERISTICS OF CONTROL CABINET:
A. Temperature Meter: Temperature show
B. Refrigerator control system set and the milk temperature adjustment.
C. Adjusts the Agitator for fully mixing up.
D. Function of the panel: Alarm for warning
This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4º Cand keep to this constant temperature, that prevent from the growth of the bacteria.
The refrigeration compressor unit are choose the excellent performance and energy-saving European "Maneurop" compressor, equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over loading or system fault. The heat preservation layer utilized the new technique of the anti-aging polyurethane blister, it owns the brilliant characteristics of heat insulations. The body of the Pot(vessel) make by the high quality stainless steel material 304 (OCr18Ni9)equipped with automatic cleaning ball and mixing system.

ITEM	Vessel Capacity(L)	Refrigeration power (W)	Rotation speed	Matched power	L× W× H	Refrigerant	Power supply
LH-M0.5	500	5322	33r/min	3KW	2200× 1350× 1150	R404A(R22)	380V/3/50Hz
LH-M1	1000	8842	33r/min	4.5KW	2200× 1350× 1550	R404A(R22)	380V/3/50Hz
LH-M1.5	1500	9214	33r/min	5KW	2200× 1200× 1750	R404A(R22)	380V/3/50Hz
LH-M2	2000	16221	33r/min	6KW	3300× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M2.5	2500	16221	33r/min	7KW	3700× 1450× 1500	R404A(R22)	380V/3/50Hz
LH-M3	3000	17221	33r/min	7KW	3950× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M4	4000	21500	33r/min	14kw	3950× 1900× 1850	R404A(R22)	380V/3/50Hz
LH-M5	5000	28442	33r/min	14KW	4200× 2100× 2000	R404A(R22)	380V/3/50Hz
LH-M6	6000	32000	33r/min	14KW	4200× 2100× 2200	R404A(R22)	380V/3/50Hz
LH-M8	8000	41668	33r/min	19KW	5200× 2200× 2150	R404A(R22)	380V/3/50Hz
LH-M10	10000	51360	33r/min	23KW	6000x2200x2150	R404A(R22)	380V/3/50Hz
LH-M12	12000	51360	33r/min	23KW	6000x2200x2300	R404A(R22)	380V/3/50Hz
LH-M15	15000	65200	33r/min	30KW	7000x2200x2400	R404A(R22)	380V/3/50Hz

Warranty: One year after receiving equipment, offer life long after sale service.
Installation and commissioning: We can send professional engineer to install and commission the equipment.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons.
Inspection: the third party inspection company or yourself to inspect the products before shipment.
Documentation: User manual, Maintenance manual, Equipment test report, etc.
FAQ:
1. Are you a factory or trading company?
We are a factory
2. How long is the warranty period?
One year
3. What's the main market of your company?
We have customers all over the world
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
