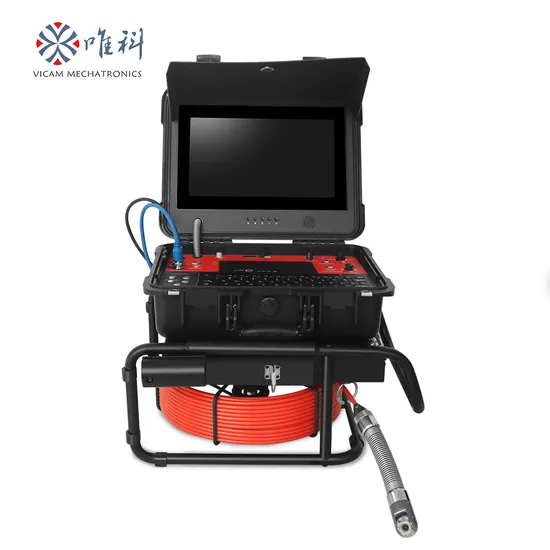

Vicam 33mm Portable Pan Tilt Rotation Sewer Camera with 512Hz Sonde V13-33ptf
Basic Info.
Model NO.
V13-33PTF
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
1000
Kind
Manual Focus Lens
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC
Effective Distance
0-9m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Monitor
13inch HD LCD Monitor
Camera Head
Diameter 33mm
Name
Pan and Tilt Sewer Pipe Inspection Camera
Camera Lens
Sapphire Glass
Field of View
120 Degree
Camera Lighting
4PCS High Intensity White LED
Cable Length
20m to 50m
Cable Mterial
Fiberglass Push Rod Cable
Battery
12V 8800mA Rechargeable Li-ion Battery
Application
Drain Sewer Pipe Inspeciton, etc.
Transport Package
Aluminum Carrying Case and Carton Box
Specification
CE RoHS SGS FC UL
Trademark
VICAM
Origin
Shenzhen, China
HS Code
8528591090
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
58.00cm * 48.00cm * 31.00cm
Package Gross Weight
22.000kg
Product Description
Product Description20m to 50m Portable Full HD 360 degree rotation Sewer Camera with Diameter 33mm Pan Tilt camera ,built in 512hz sonde and Manual focus function,HD 13inch Screen
Detailed Photos
Camera Image Quality
Product Parameters
Overview of Special functions:
1. 360 degree rotation camera head, Pan 360°,Tilt 180°
2. 1/3 CMOS,2.0MP pilex FHD , waterproof IP68
3. 13 inch IPS lcd screen, 1920X1080 resolution
4. DVR control box with audio ,video recording and photography function
5 30m Dia.7mm soft fiberglass cable
6. USB wireless keyboard to typewrite the words
7. Camera video resolution is 1080P
8. Built in 8800mA li-ion battery inside
9.Digital meter counter function, error is less than 1%
10. Adjust focus manually
| Camera Head | * Camera size Ø33mm x 72mm, sensor 1/3" CMOS ,2.0MP pixel * Waterproof IP68 , View range 120° * Adjust focus manually* Rotation: Pan 360°, Tilt 180° * 4pcs high light LED lighting adjustable * Detachable with pins type connection to Cable Reel * Lens window sapphire glass |
| Control Unit | * 13"HD IPS LCD Screen, 1280X720 resolution * PT camera Joystick, Focus manually Joystick * HD DVR SYSTEM with recording 720P video, auido and photography function * USB wireless Keyboard real time typewriting * Digital meter counter function, display on screen * 8800mA rechargeable Li-ion Battery Pack * Battery level indicator |
| Cable reel | * Fiberglass push rod cable * Cable diameter ø7mm flexible fiberglass cable * Cable length from 20m to 50m cable option |
| Standard Camera Skids | Dia.100mm Dia.65mm |
Packaging & Shipping
1set/2ctns The G.W is 22.0KG. The package size is 48x35x55cm
Company Profile
FAQ
1. Does it have 512hz sonde?
Yes, this camera is built in 512hz sonde.
2. How long cable do you have?
This model standard length is 30m 7mm flexible fiberglass cable.It is easy to pass 90 degree for 3inch pipe.
3. Do you have bigger screen for this model?
Yes, we have another model V13-33PTF with 13inch HD lcd screen.
Below is the product link for reference
4.Can I connect another small camera head to this reel?
Yes,it can . We can use a special adaptor . And it can connect 18mm, 23mm and 29mm self leveling camera.
5. How long time can you ship it?
For sample order, we can ship it in 4 days.
