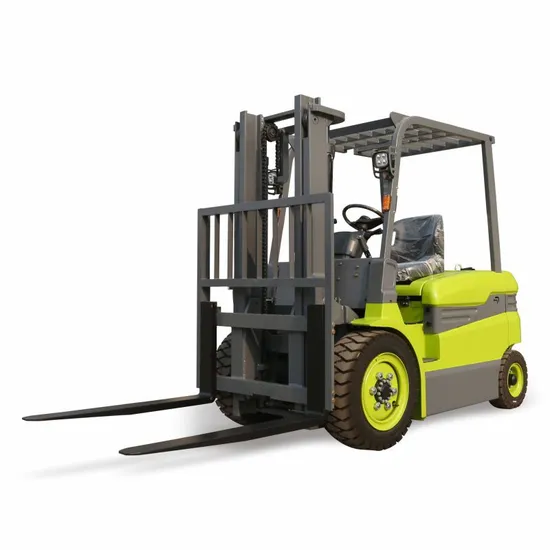

China Factory CE 1 Ton 3 Ton Hydraulic Used Electric Rough All Terrain Stacker Price Battery Mini Telescopic Hand Lift Reach Manual Warehouse Forklift

Product Description

China Factory CE Hydraulic Used Diesel Electric Gasoline Rough Terrain Battery Mini Telescopic Lifting Reach Manual Warehouse Forklift
A forklift is a transportation vehicle, used for loading and unloading, short-distance transport, and heavy lifting, is called an industrial vehicle by The International Organization for Standardization ISO/TC110, used as a transport machine, Widely used in national economic departments, for example, the railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading and unloading, stacking and short distance transport.Product Parameters

Model	CPD-25	CPD-30	CPD-35
Dynamic form	Lead acid battery	Lead acid battery	Lead acid battery
Operation type	Driving type	Driving type	Driving type
Load	2500KGS	3000KGS	3500KGS
Load center distance	500mm	500mm	500mm
Front overhang distance	410mm	488mm	488m
Wheelbase	1370mm	1700mm	1700mm
Gantry rake / caster	6 / 8αβ	6 / 8αβ	6 / 8αβ
Minimum ground clearance	114mm	114mm	114mm
Standard maximum lifting height	3000mm	3000mm	3000mm
Vehicle size L / W	3170×1100mm	3680×1225mm	3680×1225mm
Lifting / non lifting height of gantry	3935/1995mm	4040/2080mm	4040/2080mm
Fork size L / W / T	1070×125×45mm	1070×125×45mm	1070×125×45mm
Minimum turning radius	2030mm	2180mm	2180mm
Free lifting height	135mm	135mm	135mm
Height of safety frame	2100mm	2100mm	2100mm
Channel width at tray size 1200x1000	2130mm	2130mm	2130mm
Dead weight (including battery)	4950kg	4950kg	5250kg
Battery weight	1350kg	1350kg	1350kg
Axle load (full load) front axle / rear axle	7552.5/397.5kg	7552.5/397.5kg	7875/875kg
Axle load (no load) front axle / rear axle	1620/2430kg	1980/2970kg	2100/2970kg
Tire type (drive / steering)	Solid rubber tires	Solid rubber tires/Inflatable	Solid rubber tires/Inflatable
Steering tire size	18×7-8	18×7-8	18×7-8
Drive tire size	28x9-15-14PR	28x9-15-14PR(inflation)	28x9-15-14PR(inflation)
Front wheel track	1000mm	1000mm	1000mm
Steering wheel track	980mm	980mm	980mm
Rated power of drive motor	10kw(60min)	16.6kw(60min)	16.6kw(60min)
Rated power of lifting motor	10kw(15min)	13kw(15min)	13kw(15min)
Battery size	970/660/430mm	1028/700/970mm	1028/700/970mm
Battery voltage	48/600V/ah	80/500V/ah	80/500V/ah
controller	AC	AC	AC
working pressure	15mpa	15mpa	15mpa
Driving speed (full load / no load)	13.5/15km/h	14.5/15km/h	14.5/15km/h
Lifting speed (full load / no load)	250/350mm/s	230/350mm/s	250/360mm/s
Descent speed (full load / no load)	600/300mm/s	600/300mm/s	600/300mm/s
Maximum grade climbing capacity	16°	16°	16°
Service brake type	Hydraulic pressure	Hydraulic pressure	Hydraulic pressure
Parking brake type	Mechanics	Mechanics	Mechanics
Drive control type	Electric	Electric	Electric
Steering type	Hydraulic steering	Hydraulic steering	Hydraulic steering
Noise level	68	68	68
Waterproof grade	IP54	IP54	IP54

Detailed Photos1. Thicken and strengthen the fork: Sturdy and sturdy flat fork lifts strong load and high efficiency
2. Hydraulic dual exchange cooling system: The hydraulic oil tank is equipped with a main and auxiliary tank. The oil capacity and cooling area are increased, thus ensuring the steady work of the hydraulic system.
3. Thickened door frame: Rugged, non-deformedstable and stable to preventsafety accidents
4. Battery side-take function frame side door: The use of an advanced design concept of battery frame side door. The using advanced design concept of a battery replacement program gives fast and convenient maintenance.
5. COMFORTABLE OPERATING SPACE: Ergonomic full-scale operation space layout optimization, which offers operators an excellent comfortable, and convenient operating experience.
6. Night vision LED headlights: Standard warning lights can be operated easily even at night
7. Brand-reinforced tires: Use thick wheels,wear-resistant and durable, long service life.
8. EFFICIENT DRIVE SYSTEM: Advance H-Type remote drive unit, compact structure,lower gravity center.
Packaging & ShippingExporting package1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines was not damaged during transportationCompany ProfileFAQ1. Q: What's the brand of your truck?
A: Our brand is Godwin,our products cover all series such as tractor truck, tipper truck, garbage truck, water truck, cargo truck, and other special trucks.
2. Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, India, this help us better know have to handle with different certificates needed.
3. Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
4. Q: Do you have an advantage in price?
A: We have a group of long-term cooperative raw material suppliers, and raw materials have price advantages. In addition, production personnel are skilled, and labor costs also have price advantages. Therefore, products of the same quality have a higher price advantage
5. Q: Can you provide customized services?
A: We can provide various customization services, including color customization, logo customization, body size customization, and body function customization. If you have customization needs, you can communicate with sales personnel
