Blown Film Extruder Plastic Mono Layer

Product Description

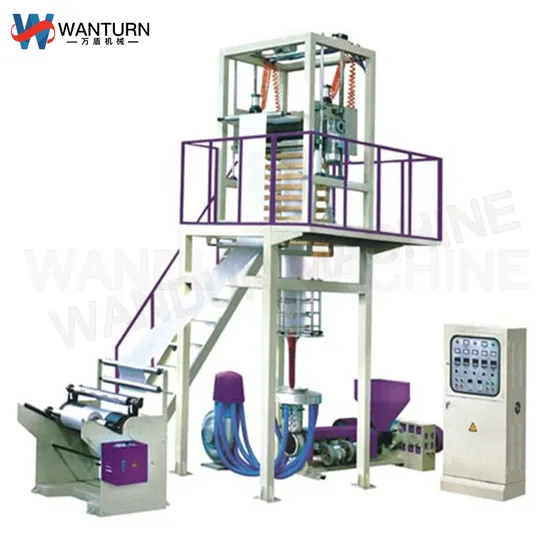

WTA 65-1200 single layer extrusion LDPE film blowing machine
Product Description

Main Technical Specification:

Model	WTA-60-1000	WTA-65-1200
Suitable raw materials	HDPE,LDPE,LLDPE
Width of single film	1000mm	1200mm
Film thickness(HDPE)	0.009-0.05 mm	0.009-0.05 mm
Max output(LDPE)	65kg/h	80kg/h
Total power	31kw	42kw
Cover dimension	5.5×2.5×4.5m	5.5×2.7×4.8m
Extruder
Screw diameter	60mm	65mm
Screw L/D	28:1	28:1
Screw material	SACM645/38CRMOLA	SACM645/38CRMOLA
Cylinder material	SACM645/38CRMOLA	SACM645/38CRMOLA
Cylinder cooling	370w×3	370w×3
Driving motor	18.5kw	22kw
Temperature	3unit	3unit
Type of DIE
Die size	100/150mm	120/200mm
Temperature control	3unit	3unit
Air ring	1pcs	1pcs
Air blower	3kw	4kw
Center steady stick	2pcs	2pcs

Introduction:
This film blowing machine is to satisfy the customer's requirements of high quality, high output film blowing equipment.
Compared with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consumption, easier operation. and create the considerable economic benefit for you.
The optional equipments can make the machine more functional
Corona treatment Auto mixer Quick screen change
For example: yellow film,
Need to add about 3% yellow master
Mix with the plastic granules
WENZHOU WANDUN MACHINERY CO.,LTD. is located in the south of Zhejiang. We are a professional producer of PE air bubble film making machines, film blowing machines, bag making machines, stretch film machines, plastic laminating machines, printing machines, plastic recycling machines, and so on. We have a good team for the R&D, design and sale. Our engineers have more than ten years of experience in plastic industry. We can design the machines according to our clients' requirements. Our main markets are South America, Africa, the Middle East, the EU and Southeast Asia. More than 98% of our products are exported to overseas markets, such as Greece, Croatia, America, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel, etc. We also provide good after-sales services immediately. The quality and good service are our business principle. You are welcome to visit our factory to have business discussion. We wish we can have great business cooperation together. Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing.
If export to EUROPEAN countries,the wooden box will be fumigated. we use PE film for packing or pack it according to customers
special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
