Hot Washing Tank Waste Pet Bottle Plastic Recycle Machine/ Washing Line

Product Description

Product Overview

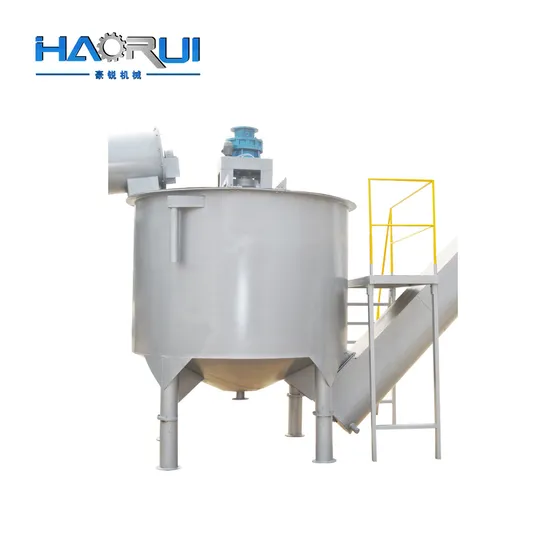

Plastic Recycling Machine PET Flakes Hot Washing Machine
Usage:make the flakes clean and bright, sell a higher price and make better more new products.

The whole line comes out as clean bottles
Product Specification

Different needs and different choices, we can meet

type	Capacity	Machine size	motor	material
500	500~1000kg/h	1.3m(Dia.)*2.9m(H)	5.5kw	carbon steel
1000	1000~1500kg/h	1.5m(Dia.)*3m(H)	5.5kw	carbon steel
2000	3000~5000kg/h	1.8m(Dia.)*3m(H)	7.5kw	carbon steel
3000	3000~5000kg/h	2.3m(Dia.)*3.5m(H)	15kw	carbon steel

Water temperature : Around 90ºC
Details Images
The special design is to stir more evenly


Double layers with thick insulation cotton, low energy consumption


Over designed size, insure really capacity,insure all flakes stay in hot water 15-20minutes to reach full washing
1. Heating mode: steam ,coal,electromagnetism
2. machine body contact with water: carbon steel or 304SS
3.Double layers with insulation
4.Equipped with operation platform
5. Consist of a water tank to collect floating

All the production process is completed independently by our factory
Packaging&Shipping
Ensure fast transportation without damage
Company ProfileBaoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE HDPE LDPE plastic crushing and washing machine, pelletizing machine .There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia and so on
Factory

successful case


FAQ
Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hoursQ: How about the rate for removing the labels by Label remover?A: Compressed bottle: more than 96% Un-compressed bottle: more than 98%Q:What's the temperature of steam washer ?A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature is 80-90ºC)Q: What's the moisture after Horizontal dewatering machine?A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw bladesfor longer working life.Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hours
