China Factory Oil Fruits Juice Milk Fine Solid Liquid Plasma Separation Yeast Centrifuge Separator Food Beverage Production Line

Product Description

Product Description

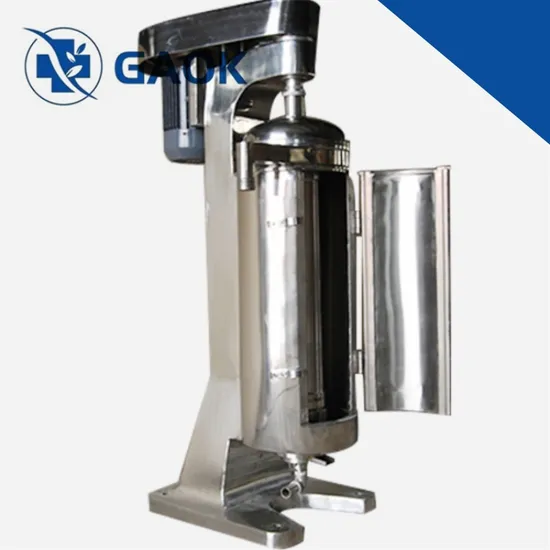

Tubular separator is a high-speed centrifugal separation equipment, which is characterized by tubular drum, small diameter and large length, high speed. This separator is mainly used for processing components in low-concentration suspensions and emulsions that are difficult to separate.
Detailed Photos
Product Parameters

Model	GF/Q45	GF/Q75	GF/Q105	GQY125	GQ150
Bowl diameter	45 mm	75 mm	105 mm	125 mm	142mm
Effective height in bowl	280 mm	430 mm	730 mm	735 mm	700 mm
Settling volume in bowl	0.45 L	2 L	5.5 L	7.4 L	10 L
Bowl speed	0-28000 r/min	20000 r/min	16000 r/min	15000 r/min	14000 r/min
Max separation factors	0-19800	20000	15025	15500	15570
Nozzle diameter	2.3 mm	2.3.5 mm	4.6.8.10 mm	6.8.10 mm	8.10.12 mm
Inlet pressure	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa
Throughput	≈100 kg/h	≈500 kg/h	≈1200 kg/h	≈2000 kg/h	≈3000 kg/h
Motor type	Series motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
Motor power	0.6 kw	1.5kw	2.2 kw	3.0 kw	3.0 kw
Motor speed	0-4500 r/min	2840 r/min	2880 r/min	2880 r/min	2880 r/min
Size	580*650*750 mm	800*400*1200 mm	800*700*1400 mm	850*500*1600 mm	800*700*1600 mm
Weight	120Kg	300Kg	400Kg	610Kg	520Kg

Structure

Application
Company Profile
Anyang Gaokang Medical Co.,LTD. is a collection of product design, development, manufacturing, engineering installation, after-sales service as one of the comprehensive enterprises.The company's products are designed and manufactured in strict accordance with the relevant national equipment standards. Our products are involved in pharmaceutical engineering, dairy equipment, beverage equipment, biological engineering, chemical engineering, essential oil refining equipment and experimental equipment manufacturing and whole plant installation engineering.The company has a rich technical service team to provide customers with process design, plant layout, product formulation, technical consulting and turnkey engineering services for new construction or expansion projects. After years of hard work and continuous innovation, we have rapidly grown into a leading enterprise in the same industry with domestic and foreign markets, advanced production, testing and testing equipment, complete product varieties, advanced technology and excellent service.


FAQ
1. What certificates do you have?
We can provide CE, ISO 9001, etc.
2. What is the warranty period of the equipment?Normally 1 year warranty.3. Can we visit your factory?Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.4. Can it be customized?Of course, our equipment can be customized according to the actual requirements of customers.
