Explosion Type / Ex-Proof Type Exdii Bt4 Class Pneumatic Electric Solenoid Valve Actuator Machinery Positioner Feedback Indicator Waterproof Limit Switch Box

Product Description

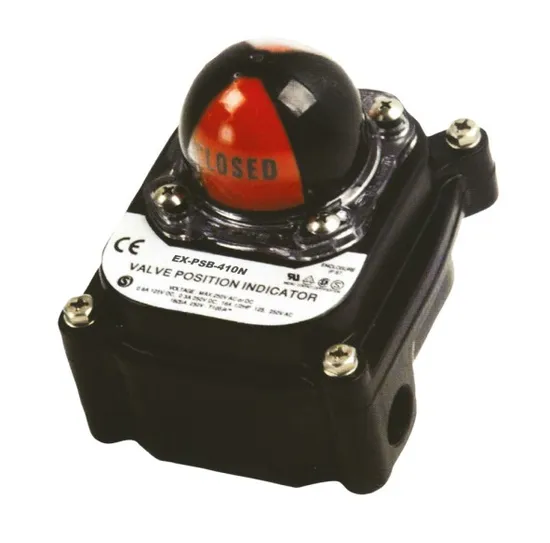

RFS Limit Switch box ,ex-proof limit switch box
Features :
Limit Switch box is designed based on advanced technology wich are soled beautiful ,high-level quality and with the following characteristice:
1. Visual Positon Indicator and waterproof type
2. Easy to set without tool based on spring loadedplined cam
3. There are many connection terminal and 8pcs of points ,easy to connect and safety
4. Standard dual cable connections
5. No worry to loose bolts while cover opens
6. NAMUR standard stainless steel shaft and bracket

Model	RFS-210N/RFS-310N	RFS-410-EX
Explosion proof	IP67	EXDII BT4
Ambient Temp	-25ºC - 85ºC
Cable Entry	G1/2"	G3/4"
Terminal stripe	8
Position indicator	0 - 90ºC
switches	mechanical type
Potentiometer	1 KΩ
current	4-20mA
