Motor Overoad Protection High Oil Pressure Protection CNC Torsion Bar Press Brake

Product Description

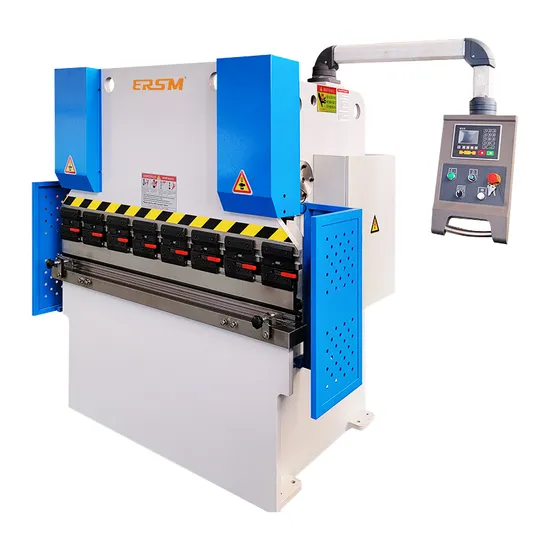

Product Description Key Advantages of the Bending Machine Structural Durability: Built with a European-style monoblock welded steel frame, heat-treated for enhanced strength and rigidity.
Advanced Design: Developed by experienced engineers using FEM and DOE analysis for optimized modern performance.
Comprehensive Safety Features: Equipped with IP65-rated electrical cabinets, CE-compliant safety interlocks, protective fencing, and front and rear safety guards to ensure safe operation.
Reliable Hydraulic System: The hydraulic system, from Bosch-Rexroth, integrates U.S.-made Parker seals to guarantee stability and precision under continuous rated loads.
User-Friendly Operation: Includes a movable, single-hand foot pedal, meeting CE safety standards for ease of use.
Product Parameters

Nominal pressure	400KN
Length of workbench	1600mm
Distance between housings	1350mm
Throat depth	180mm
Ram stroke	100mm
Open high	305mm
Back gauge	20-400mm
Ram Speed	Work Speed	80mm/s
	Pressing	12mm/s
	Return	80mm/s
Overall dimension	2000*1500*2100
Weight	2400KG

FAQ 1. What type of design does the torsion axis bending machine feature?
The machine boasts a European streamlined design with a monoblock welded steel frame, ensuring rigidity and durability.
2. What safety features are included in the machine?
It includes an IP65-rated electrical cabinet, CE-certified components, protective fences, safety interlocks, and a movable
single-hand pedal switch for safe operation.
3. What hydraulic system is used in the machine?
The hydraulic system is sourced from Germany, featuring full-loop electric-hydraulic proportional servo control, and all seals in the cylinders are from PARKER, ensuring stable and precise operation.
4. What control system does the machine utilize?
The machine is equipped with the ESTUN E21S control system, which provides a complete solution for shearing applications and includes advanced features for accurate positioning.
5. How does the machine ensure operational efficiency?
It offers intelligent positioning, a stock counter, and backup/restore functions for parameters, which enhance productivity and ensure reliable performance.
