1/2/ 4 Core FTTH LSZH Fiber Optic Cable Indoor Singlemode Drop Cable
| US$0.01-0.03 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
GJXCH
Connection Structure
SC-SC
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
1~12 Cores
Certification
RoHS, CE, ISO9001, CCC, SGS
Brand
OEM
Sheath Material
LSZH
Color
Black/White
Fiber Type
G657A1/G657A2/G652D
Fiber Quantity
1/2/4/6/8/12
OEM/ODM
Acceptable
Strength Member
FRP/Steel
Transport Package
Carton Box+ Pallets
Specification
2KM/Drum
Trademark
YRT
Origin
China
HS Code
8544700000
Production Capacity
1500km/ Day
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 33.00cm
Package Gross Weight
15.000kg
Product Description
Product DescriptionThe FTTH Drop Fiber Cable is also called butterfly optical cable because it looks like a butterfly in cross section. It has the advantages of small outer diameter, light weight, low cost, reliable performance, and easy installation. It is the leading product for fiber optic cable in the construction of FTTH network. With the continuous advancement of FTTH construction, the demand for butterfly optical cables has also increased year after year, home digitalization will further develop, and butterfly optical cables will also be more widely used.

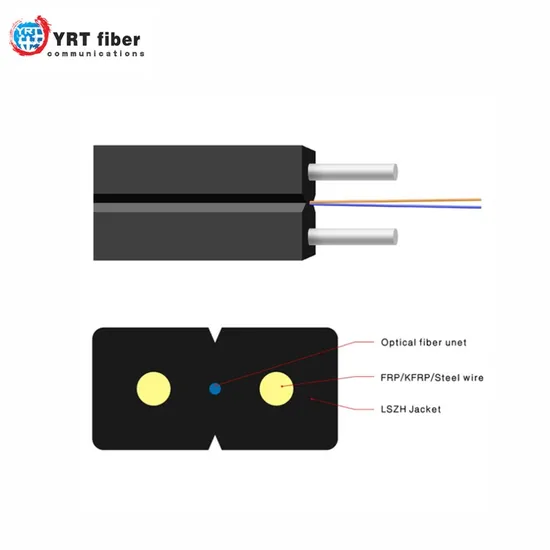

The cable consists of optical communication unit, strength member, self-supporting unit and outer sheath; Optical communication unit includes fibers or tight buffer fibers; Strength member can be metallic or Non-metallic according to customers' demand. Detailed Photos
Product Parameters
| Parameters | Specifications | ||||
| Fiber Core | 2 | 4 | 6 | 8 | 12 |
| Cable Dimension (mm) | (3.0±0.1) × (6.2±0.1) | (3.0±0.1) × (6.2±0.1) | (3.2±0.1) × (6.3±0.1) | (3.5±0.1) × (6.5±0.1) | (3.5±0.1) × (6.5±0.1) |
| Cable Weight (kg/km) | 26 | 26 | 26 | 27 | 28 |
| Self-supporting Messenger | 1.0mm /1.2mm/1.5mm (Steel Wire or FRP) | ||||
| Parallel Messenger | 0.4mm/ 0.45mm/ 0.5mm (Steel Wire or FRP) | ||||
| Tensile Strength (N) Long term | 300 | ||||
| Tensile Strength (N) Short term | 600 | ||||
| Crush(N/100mm) Long term | 1000 N/100mm | ||||
| Crush(N/100mm) Short term | 2200 N/100mm | ||||
| Bend Radius (mm) Static | 15 | ||||
| Bend Radius (mm) Dynamic | 30 | ||||
| Cable cut-off length | ≤1260nm | ||||
| Attenuation(+20ºC)@1310nm | ≤0.45 dB/km | ||||
| Attenuation(+20ºC)@1550nm | ≤0.30 dB/km | ||||
| Trans/Storage/Operating Temperature | -20ºC~+60ºC | ||||
| Installation Temperature | -5ºC~+50ºC | ||||
| Out sheath/Jacket | LSZH | ||||
