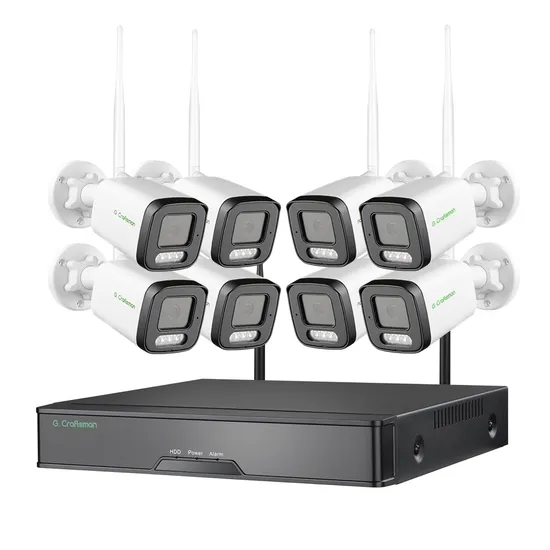

Gw-Tfd-M5X-K8 (AG) Xmeye Icsee 5MP Outdoor Wireless WiFi Camera 8 Channel NVR Kit Home Security Video Surveillance System

Product Description

Model No.: GW-TFD-M5X-K8
Features:
8CH 5MP WIFI Camera NVR Kits
5MP Metal bullet WIFI camera
IR: 4pcs Dual Light Source IR:30M
Lens: 3.6mm
5MP 8CH WIFI NVR with 1 of SATA
AI Smart AnalyticsG.Craftsman AI Camera can intelligently filter objects to focus on human and face detection, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.
P2P Remote Viewing, Anytime Anywhere Remotely view the WIFI camera/ NVR via phone APP on your mobile device, free G.craftsman PC software on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).
Face Capture &Search & Playback G.Craftsman Camera detects and captures human faces, the NVR supports the intelligent search and playback by AI analysis results such as face capture which greatly enhances the monitoring efficiency.
Smart H.265 Compression Smart H.265, The advanced video codec,save 70%~80% bandwidth compared with H.264. Especially Gcraftsman smart NVR working with smart camera is able to display the best image quality in a lower bit rate.
Multi-Languages Menu Multiple Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German etc, it is easy for global users.Besides, we can also custmoize language at customer's requirement.
WIFI Camera Connection Diagram GCraftsman Wireless NVR Camera System offer a true plug-and-play, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time. IP67 Waterproof Supporting IP67-rated weather-proof, which are the leading level of the industry, the G.Craftsman Network Camera is well protected against rainy and foggy weather to ensure the performance.
Better in Details Warmlight Flashing Design GCraftsman adpots the dual light source technology for IR board and re-engineering the dual light programme in the chipset. Once the alarm function is triggered, The warm light will be flashing and the night vision become colorful immediately.
Packing & Delivery Quality Camera, NVR and all of the accessories are well-packed with protective mat in the box. G.Craftsman uses hard & thick cartons with cornor pads to protect the cameras, especially the vibration test before shipment can ensure the goods arrive there in good condition.
Product Parameters

WIFI Cameras
lmage Sensor	5 Mega Pixel,HD CMOS Sensor
Min. lllumination	Color: 0.01Lux@F1.6; B/W: 0.001Lux with LED on
Main Stream	12FPS (2880x1616,2560×1440; 1~25 FPS adjustable )
Sub Stream	12FPS (800×448, HD1, D1,CIF,QVGA; 1~25 FPS adjustable)
Lens	3.6mm Standard; 2.8mm/6mm Optional
LED Type	Smart Dual Lights
LED Distance	Up to 30m
Built-in Mic	Yes
Built-in Speaker	Yes
Built-in TF Card Slot	N/A
Network Connector	RJ45 Lan Cable
Reset Button	Support
Power	DC12V
Protection Level	Full Metal, IP66
Intelligent Analysis	Humanoid Detection, Face Detection
WIFI Connection	2.4G Hz
ON-VIF	Unsupport
WIFI NVR
Type	8 Channel WIFI NVR
Compression Method	H.265 AI / H.265+/H.264
Operating System	Embedded LINUX
HDD	1SATA, MAX 14TB Each
Network Protocol	RTSP,ACP,ONVIF,P2P,UPnP,NTP,DHCP,PPPoE
Incoming bandwidth	72Mbps
Video Preview	1/2/4/6/8/9
Playback	5M(1+1)/4M(2+2)/3M(3+3)/1080P(5+3)
Video Input	8ch Max 5MP Cameras
Video Output	1x HDMI(3840x2160),1x VGA(1920x1080)
Audio IN/OUT	16(IPC IN):1(RCA)
Alarm IN/OUT	N/A
Others	USB 2.0x2, HDMI, VGA, Audio I/O
Power	DC12V 2A
Intelligent Function	Working with Same Series IPC: Human Detection Recording,Human Detection, Face Detection,Smart Motion Detection
Trigger Events	Recording, Email, Screen Tips, Buzzer, App push
ON-VIF	Support
Accessories
Remote Controller	Yes
HDMI Cable	4K HDMI Cable, Length 2 Meters
HDD	Optional
Others	PSU, Mouse, User Manual, Screws and So on
