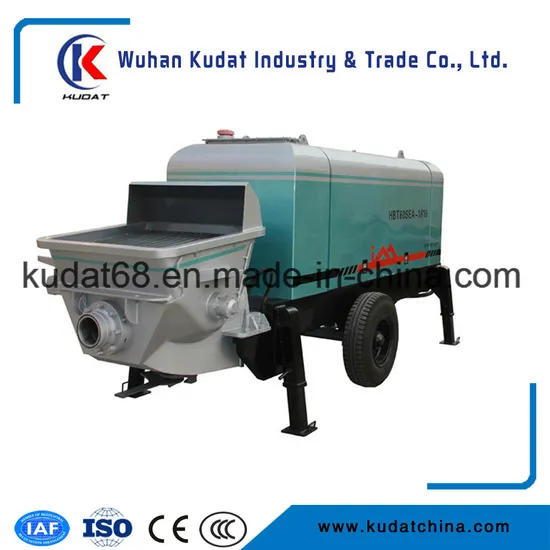

Electric Trailer Mounted Concrete Pump Hbt60sea

Product Description

Description:
1.Intelligent power control system to regulate the engine speed automatically, for smooth
and efficient operation
2.Plunger pump with constant power, to ensure the efficiency of main engine
3.Good sealing S-valve, installed with floating wear resistant ring
4.High-quality wear resistant alloy components for long service-life
5.High delivery pressure for demand of high-rise and long distance projects
6.Air cooling system, without dependence of external water
7.PLC system to ensure best control performance
8.With re-pumping function to smooth construction of better accessibility
9.Equipped with wired remote controller, easy to operate

Applications:
1) Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2) Conveying refractory and insulation materials
3) Conveying greening soil in ecological environment construction
4) Conveying all kinds of engineering construction in the plain concrete, fiber concrete
5) Pressure grouting of foundation pile


Competitive Advantage:
1. Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and
longer economic life will enhance the overall quality of the machine as a whole.
2. Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out
pumping and direction switching are operating independently, rendering the system simpler and more
reliable.
3.Using returned oil filter technology to prevent alien Objects from entering the hydraulic
circuit, further Improving the reliability of the system.
4.Using the anti-wear hydraulic oil specially made by Esso of US enhacing durability of the machine
5.S Valve and gate valve pumps are all equipped with Pressure regulating device which is
quicker, more reliable and oil does not leak out.
6. The S pipe is mounted in whole with high grade manganese steel and the fractioning
surface is welded up with anti-wear materials and thus, possessing and being wear resistant. The smooth and non
accumulating design of the interior of the pipe gives a smooth concrete flow hence further
improving the efficiency.
7.The high wearing part and cutting ring of the so called "eye-glass" plate of the S-valve is made of wear resistant alloy to increase its economic life.
8.The stirring and mixing system use a specially designed double enclosed structure,
further improving sealing of the system and giving a more effective protection of the motor.
9. Humanized and artificially intelligent electronic Control system makes operation simple
10. Using a central programmable control unit (PLC) with various preinstalled programs for various auto protection modes, which ensures and strengthens the reliability of the system.
11.Fully enclosed electrical control box enables the Machine to function normally in adverse environ-Ments.
12. Key electrical components have been sourced from world famous brands such as
Scheneider of France, Mitsubishi and Panasonic of Japan, which guarantees product
reliability and a low failure rate.

Model			HBT60SEA-1816
Valve			S
Theoretic pressure of concrete delivery Mpa	Small delivery under high pressure		16
	Large delivery under low pressure		9.2
Theoretic discharge capacity of concrete delivery m3/h	Small delivery under high pressure		37
	Large delivery under low pressure		61
Electric motor KW	Rated power		90
Main pump	rated pressure (MPa)		32
	Rated flew (L/min)		301
Max. theoretic delivery distance (M)	Pipe	Ø150A	Horizontal1350 Vertical290
		Ø125A	Horizontal 1250 Vertical 270
Max. aggregate size(m m)	Pipe	Ø150A	50
		Ø125A	40
Diameter of delivery cylinder×stroke (mm)			Ø200×1800
Hopper volume ×material feeding height m3×mm			0.9×1400
Hydraulic oil tank (L)			560
Overall dimension length×wide×heigh (mm)			6200×2050×2200
Max trail speed (km/h)			≤8 KM
Total weight			6400
