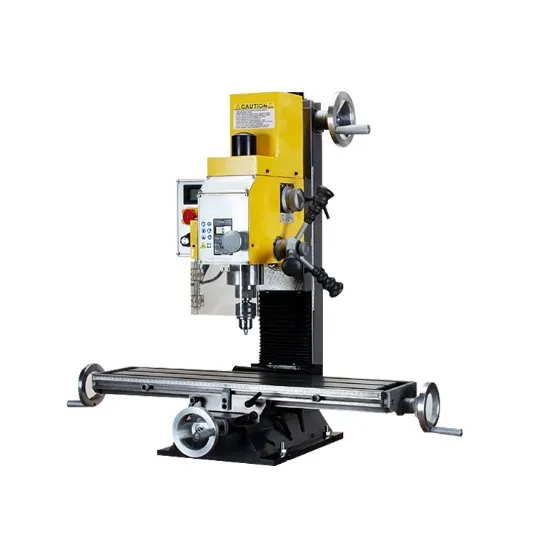

Vertical Small Gear Head Bench Milling and Drilling Machine for Metal
| US$990.00-8,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DMC7045/DMC7040
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
880 x 832 x 1140mm
Trademark
SMAC
Origin
China
HS Code
1
Production Capacity
1000
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg
Product Description
Product Description| 1 | Standard Accessories | Optional Accessories |
| 2 | Allen wrenches 3,4,5,6mm | Machine stand |
| 3 | Wedge | Power feed attachment |
| 4 | Wrench | Paraller vice |
| 5 | Drill stock | Drill chuck |
| 6 | Screw driver 6" | Milling chuck |
| 7 | Drawbar washer | Change sleeve |
| 8 | Milling chuck | |
| 9 | Boring bar | |
| 10 | Auto-tapping electrical system |
| odel | ZAY7045 ZAY7045G ZAY7045G | ZAY7040 ZAY7040G ZAY7040FG | ZAY7032 ZAY7032G ZAY7032FG | ZAY7020 ZAY7020G | |
| Drilling capacity | 45mm | 40mm | 32mm | 20mm | |
| Face milling capacity | 80mm | 80mm | 63mm | 63mm | |
| End milling capacity | 32mm | 32mm | 20mm | 14mm,20mm | |
| Distance from spindle nose to table | 450mm, 680mm | 450mm, 680mm,440mm | 450mm, 680mm,440mm | 382mm,350mm | |
| Min. distance from spindle axis to column | 193.5mm,272.5mm,260mm | 193.5mm,272.5mm,260mm | 193.5mm,272.5mm,260mm | 202mm,175mm | |
| Spindle travel | 130mm | 130mm | 130mm | 120mm,130mm | |
| Spindle taper | M.T.4 or R8 | M.T.4 or R8 | M.T.3 or R8,M.T.4 or R8 | M.T.3 | |
| Step of spindle | 12,6 | 12,6 | 12,6 | 12,6 | |
| Range of spindle speed | 50Hz | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. | 80-2080,80-1250r.p.m. |
| 60Hz | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | 100-2500,95-1500r.p.m. | |
| Swing diameter of headstock | 405mm,680mm, | 405mm,680mm | 405mm,680mm | 405mm,680mm | |
| Swivel angle of headstock | horizontally | 3600 | 3600 | 3600 | 3600 |
| perpendicularly | +900 | +900 | +900 | +900 | |
| Size of table | 800 x 240mm2, 700x 240mm2 | 800 x 240mm2, 700x 240mm2 | 800 x 240mm2, 700x 240mm2 | 585 x 190mm2 | |
| Forward and backward travel of table | 175mm | 175mm | 175mm | 150mm | |
| Left and right travel of table | 500mm, 400mm | 500mm, 400mm | 500mm, 400mm | 380mm | |
| Power | 1.5kw (2Hp) | 1.1kw (2Hp),1.1kw(0.75Hp) | 0.75kw (1Hp) | 0.75kw (1Hp),0.55kw (1Hp) | |
| Voltage/Fequency | As custmers requirement | As custmers requirement | As custmers requirement | As custmers requirement | |
| Overall height (Without stand) | 1060mm; 1300mm;1020mm | 1060mm; 1300mm;1020mm | 1060mm; 1300mm;1020mm | 1060mm; 1300mm | |
| Net weight | 285kg,320kg,325kg | 283kg,318kg,323kg | 280kg,315kg,323kg | 270kg,300kg | |
| Gross weight | 335kg,370kg,375kg | 333kg,368kg,373kg | 330kg,365kg,370kg | 330kg,350kg | |
| 880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | 880 x 770 x 1140mm3 | ||
| Packing size | 880 x 832 x 1140mm3 | 1030 x 770 x 1140mm3 | 880 x 832 x 1140mm3 | ||
| 1030 x 832 x 1140mm3 | 1030 x 832 x 1140mm3 | 1030 x 832 x 1140mm3 | |||
| Loading amount (overall height) | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container 28pcs/20container | 36pcs/20container 18pcs/20container | |
