Automatic Carton Filling Line for Liquid Fertilizers Machine Multi-Function Automatic Filling Packaging Machine Factory Price Automatic High Speed Bottle Filler

Product Description

4head 6 head 8head 10head 12head automatic piston filling machine (60,1000ml ,1L-5L,0.5-5L)
Product description

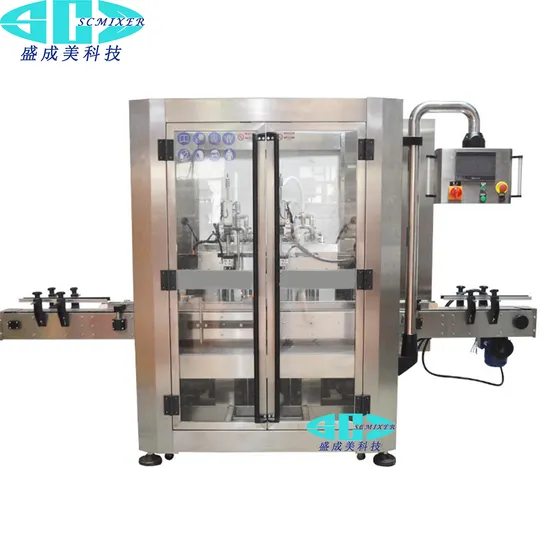

Automatic piston filling machine adopts plunger quantitative filling principle, bottle feeding, positioning, filling, bottle out are automatically controlled by PLC, in line with GMP standards. Suitable for liquid filling of medicine, food, daily chemical, pesticide and fine chemical industry.
1: touch screen operation interface
2:6 up and down motion filling, effectively prevent foam generation
3: The filling accuracy can reach ±1%
4: The filling cylinder is treated by hard chromium and ground, unique filling valve design, no dripping
5: with no bottle and no canning function
6: Design different positioning devices according to the actual situation of the bottle
7: The equipment is easy to clean, can be folded without tools, can also be online cleaning or high temperature sterilization
8:PLC programmable control, using Japan Mitsubishi
9: Pneumatic components using Taiwan Airtek
10: SUS 304# stainless steel is used for the equipment shell
11: Equipped with glass protective cover in line with health and safety standards
Note: Filling range and speed can be designed according to user requirements

Filling range(ML)	0.5-5L(can custom made )
Filling range(BPM)	20-40bottle/min
Voltage(VAC)	380V
Motor power(KW)	2.0
Air consumption (MIN)	4KGS×30LITER
Machine size	4000x1300x2100
Weight(KG)	650

Main configuration

Name	Original	Brand
PLC	Japan	Mitsubishi
Touch screen	Germany	Siemens
Conveyor motor	Zhejiang	GPG /Zhongda
Pneumatic element	Taiwan	AirTAC
Optical fiber sensor	Japan	Panasonic
Servo motor	Shenzhen	Inovance

Automatic constant temperature filling machine for food products
Products description This series of paste filling machine is our company set production experience for many years, and the introduction of absorbing the world advanced technology development and become a new generation of fully automatic filling machine.It USES a piston quantitative, integrating mechanical and electrical, pneumatic, electrical and pneumatic components to choose the world famous brand, controlled by PLC, reasonable design, compact structure, beautiful shape, with stable and reliable performance, high filling precision, strong adaptability, simple operation and convenient maintenance, etc.
Widely used in various semiliquid, paste, viscous body, sauces, and contains a variety of makings of filling material.Such as pulp beverage, honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce and all kinds of paste.
Principle features 1.Can connect with bottle feeding table, capping and labeling machine,effective cost / space saving 2.It has intuitive and convenient operation, measuring accurate, positioning precision 3.Fully in accordance with the GMP standard production and passed CE certification 4.Siemens Touch screen/PLC+anti explosion pump+Servo motor control 5.No bottle no filling Technical parameter

Qty of filling head	4~14 head.
Filling capacity	40ML-3000ML
Filling speed	About 6~8 bottles/min 400ML BOTTLE
Filling accuracy	±1%.
Material	#304 stainless steel
Program controller	Touch panel screen PLC plc
Air pressure	0.6 Mpa
Power	2.5kw
Capacity of material tank	200L
Protective device	Outage alarm on shortage of liquid in the reservoirtank.

Application field Packaging Details Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we also can pack it according to clients' requirements Why Choose Us Base on our rich experience, high quality, perfect service, timely delivery, and competitive price, we believe that it must be a pleasure cooperation once you choose us! FAQ: Q:How to send my enquiry?
A:You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat). Q:How long can I get feedback after enquiry?
A:We will reply you within 2hrs.
Q: Where is your factory? A: Our factory is located In guangzhou province.
