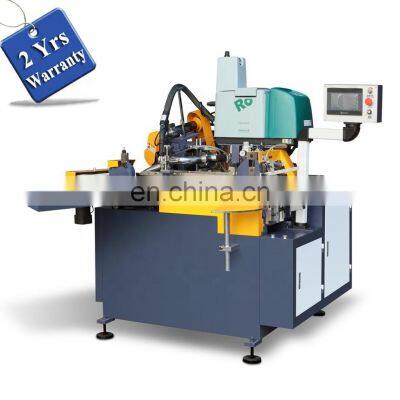

PCF220A CE Certificate Ice Cream Paper Cone Sleeve Wrapper Making Machine for Korea korean

Product Description

Product Description
PCF220A CE Certificate Ice Cream Paper Cone Sleeve Wrapper Making Machine for Korea korean
Videos
Video demonstration only for reference
Video 01: /watch?v=2k1VIvujNRI
Video 02: /watch?v=qtKLWijVr28
Product Description
Features:
1, Robatech gluing system and SCHNEIDER electricals ensuring long service life and less maintenance
2, High efficiency with max speed up to 220 pcs/min
3, Automatic counting, oil circulation lubrication and lower power consumption
4, Convenient installation with small work place occupied
5, Box shaped transmission system for high durability and stability.
Parameters:

Model	PCF220A
Max Speed	190-220 PCS/minute
Paper Specification	The ordinary paper, compound aluminum foil paper, no more than 120g/m2, dry wax paper, art paper not exceeding 180g/m2
Power	3 Phases, 380v 50HZ 9KW,
Air Source	Air pressure 0.4-0.8Mpa, User should buy Air Compressor
Height & Angle	110-230mm & 17°-23°
Dimensions and Weight	1850*1250*1800mm, 1000 kg
Main Configuration	1).Glue Box:is adopted Robatech from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: Schneider 4).PLC: Mitubishi 5). Encoder: OMRON 6).Touch Screen: WEINVIEW 7).Vacuum Pump: HUITONG 8).Main Electrical:SCHNEIDER

Detailed Images
Touch Screen for Easy Operation
Automatic Paper Fan Feed
Cone Forming Mold for Long Service Life
Switzerland Robatech Glue Spraying System
Vacuum Pump System with Waste Discharge
Automatic Paper Cone Stacker
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
