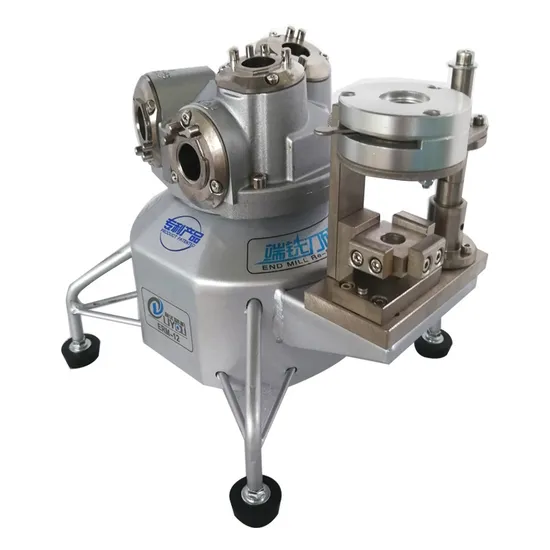

Advanced Re-Sharpening Machine for Precision Cutting Edge Renewal

Product Description

Product Description
High precision, high efficiency
Optimized structure design
High precision grinding wheel and grinding structure
Unique mill edge adjustment device
Precise holder fixture
Re-sharpening operation steps
1 Mill edge adjust
2 Rear inclined angle grinding
3 Blade edge grinding
4 Front inclined angle grinding

Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.
PRODUCT ADVANTAGES
1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.
2. Grind rear inclined angle, blade edge and front inclined angle.
3. For different end mill grinding, no need to change grinding wheel.
4. Easy to operate, grind one piece need no more than one minute.
5. High precision (0.01mm), normatively re-sharpening.
6. Mill cutting edge can be adjusted suitable for materials to be processed.

Product Parameters

Model	ERM-12
Applicable diameters	fai 2-fai 12mm
Applicable flutes	2 flutes, 3 flutes, 4 flutes
Axial angles	Secondary clearance angle 6° Primary relief angle 20° End gash angle 30°
Grinding wheel	E12SDC (CBN Choose)
Power	220V±10%AC
Motor output	300W
Rated speed	6000 rpm
Outer dimensions	290*260*230
Weight	15KG
Normal accessories	Collect*7pcs, 2 flutes holder*8pcs, 3 flutes holder*8pcs, 4 flutes holder*8pcs, case*1pc, Hexagon wrench*2pcs, Brush*1pc, controller*1pc
