Cultivator Ridging Disc Plow for 18 -30 HP Hand Walking Farm Mini Skid Loader Tractor

Product Description

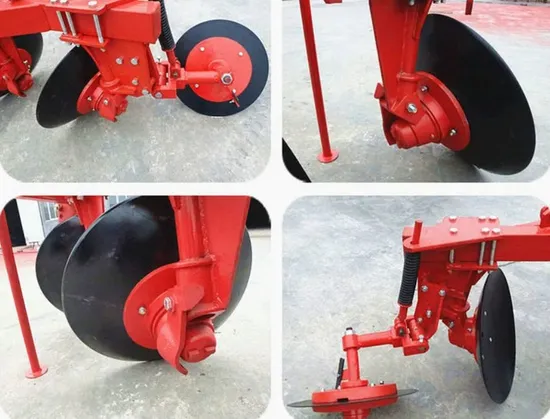

Products photos
This agricultural machinery tractor 3 point hitch disc plow is standard 3 point hitch with tractors from 30hp to 120hp. It is revolving to furrow the land during operation. The 3 point hitch disc plough is especially suitable for land which has weeds, stems and frictional soil with small brick etc.
Advantages
1).This 3 blade disc plough has the feature of not winding grass, not block and no hip building-up.
2).The mounted disc plough is easy to cut off stems and roots.
3). Less working resistance.
4). It is a standard mounted disc plough for all 4-wheel tractors.
TECHNICAL SPECIFICATION

Model	Unit	1LYQ-220	1LYQ-315	1LYQ-320	1LY(T)-322
Working width	mm	400	450	600	660
Working depth	mm	200			220
Q'ty of disc		2	3	3	3
Total weight	kg	140	160	190	340
Matched power	hp	18	25	25-40	40-50
Linkage		Tractor Three-point Suspension

PRODUCT DESCRIPTION This agricultural machinery tractor 3 point hitch disc plow is standard 3 point hitch with tractors from 30hp to 120hp. It is revolving to furrow the land during operation. The 3 point hitch disc plough is especially suitable for land which has weeds, stems and frictional soil with small brick etc. Advantages 1).This 3 blade disc plough has the feature of not winding grass, not block and no hip building-up. 2).The mounted disc plough is easy to cut off stems and roots. 3). Less working resistance. 4). It is a standard mounted disc plough for all 4-wheel tractors. TECHNICAL SPECIFICATION
Model	Unit	1LYQ-220	1LYQ-315	1LYQ-320	1LY(T)-322
Working width	mm	400	450	600	660
Working depth	mm	200			220
Q'ty of disc		2	3	3	3
Total weight	kg	140	160	190	340
Matched power	hp	18	25	25-40	40-50
Linkage		Tractor Three-point Suspension
Model	Unit	1LY(T)-325	1LY(T)-425	1LY(T)-525	1LY(T)-625
Working width	mm	750	1000	1250	1500
Working depth	mm	250~300
Q'ty of disc		3	4	5	6
Total weight	kg	420	490	565	640
Matched power	hp	50	90	120	160
Linkage		Three-point suspension II type
The items selectable		Scraper or Heavier duty pull rod
Model	Unit	1LY(T)-325	1LY(T)-425	1LY(T)-525	1LY(T)-625
Working width	mm	750	1000	1250	1500
Working depth	mm	250~300
Q'ty of disc		3	4	5	6
Total weight	kg	420	490	565	640
Matched power	hp	50	90	120	160
Linkage		Three-point suspension II type
The items selectable		Scraper or Heavier duty pull rod

specification

item	value
Warranty	1 Year
Applicable Industries	Other
Weight (KG)	320
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2024
Core Components	Bearing
Type	disc plough
Use	loosen land
Place of Origin	China
Brand Name	HR
Condition	New
Key Selling Points	High Productivity

Packaging & Shipping
Company Profile
Founded in 2014, Shandong Weito I&E Co., Ltd is a manufacturer and supplier , specialized in the research and development, sales and service of Farmer walking tractor ,wheel tractor 20-300 hp , power tiller 8-22hp ; rice trans planter 4,6 ,8 rows ;and skid steer loaders, and related tractor and loader accessories ; and like farm trailer 0.5 to 15 tons , front loader , round and square baler ,plant protection machinery drone 20 ,30 ,50 l ;boom sprayer 500,750 ,1000 L ,excavator bucket ,snow blade & blower,grass mower and bulldozers and so on We are located in Weifang city, which is a well-known traditional and prosperous machinery industry base in North China.
Shandong weito I&E Co., Ltd a history of more than 20 years of comprehensive industrial and trade enterprises. We have 28 R& D engineers and more than 300 employees. We are located in Shandong Province, which is a well-known traditional and prosperous North China Machinery Industry Base. We are committed to providing one-stop solutions for Chinese Agricultural &engineering and mining equipment.
Committed to providing quality products and services,Weito employs 30 experienced technical and management personnel. Over the past few years of production and management and exploration, Weito set up its own quality management system and service system. We make all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Selling well in 300 cities and 30 provinces around China, our products are also exported to more than 30 countries and regions all over the world.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking Agricultural &engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
And we will keep working hard and increase investment to improve our quality and service for many years in the future.
We sincerely welcome clients and friends to visit us and join us.
Weito ,are together with you for tomorrow !

5.OUR CERTIFICATE
ISO 90001 &CE Approval .
6.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
8.kinds of farm implements and tools
9.Questions for customers
a)How long is the warranty period for our purchase of your product?
the warrenty time is 12 months from the date of B/L or running 1000 hours ,which one is earlier.
b)Where do we buy spare parts from?
We provide over 6 years of spare parts and technical support; If you need to purchase spare parts, you can contact your local dealer or purchase from our factory.
c)What should be done if there is a quality issue or problem?
We provide 7 * 24-hour after-sales service support. You can send the problems nature by pictures , videos, or provide feedback through WeChat, WhatsApp, E-MAIL, and other channels; We will provide a solution to the problem within 24 hours.
or CONTACT WITH LOCAL DEALER.
d) payment terms: L/C at sight or T/T payment in cash .
e)Delivery time: within 30days .
