Customizable FRP Rebar Production Line for Global Suppliers

Product Description

Product Description
FRP Rebar Machine Technical Information
The machine is mainly used to produce FRP Rebar of various specifications. The machine can automatically complete slitting, impregnation, preforming, winding, heating and curing, traction, fixed length cutting and collection and stacking.
I. Structure principle
This unit mainly consists of yarn frame, dipping tank, winding, oven, traction machine, cutting saw and stacking device.
1,Yarn frame: placing yarn mass, using steel plate, steel pipe and angle steel welded structure.
2,Dipping tank: welded with stainless steel material, with pressure roller inside to make the roving fully impregnated in resin.
3,Winding device: Adopt gear drive to drive the thread roller to rotate around the product and wind out the thread. Adopt frequency conversion speed control mode, the speed is steplessly adjusted.
4,Winding device: Adopt gear drive to push down the winding tape wound on top of the FRP bar to form the thread Adopt frequency conversion speed control mode, the speed is steplessly adjusted.
5,Oven: Adopt stainless steel tube heater and intelligent temperature control instrument to control temperature. The heater box adopts split structure, which can be easily opened to clean up the dripping resin and filled with heat insulation and heat preservation material inside.
6, Automatic tracking cutting saw: It can cut the FRP bars on the production line online at fixed length according to the specific requirements.
7, Product stacking device: fiberglass reinforcement is stacked after cutting and taken away and yarded by production staff.

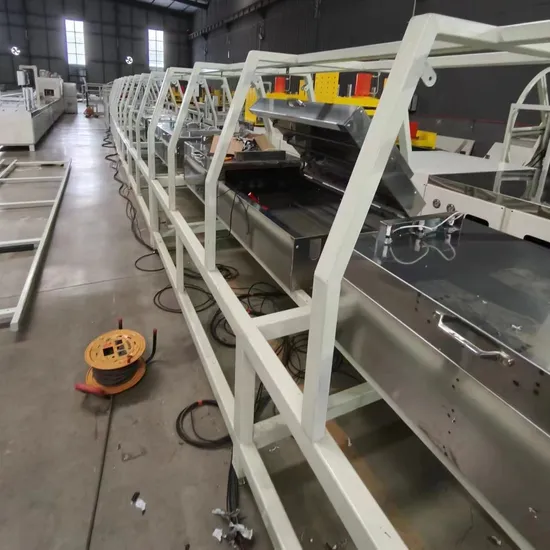

Detailed Photos
Certifications

Packaging & Shipping
Company Profile
Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.
Main products:
FRP tank and chemical equipment
High, middle, low pressure FRP pipe
FRP small-scaled wastewater treatment tank
FRP cooling tower,frp grating,tube,bar,reabr
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine
Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.
