Battery Chip Rotary Tablet Press

Product Description

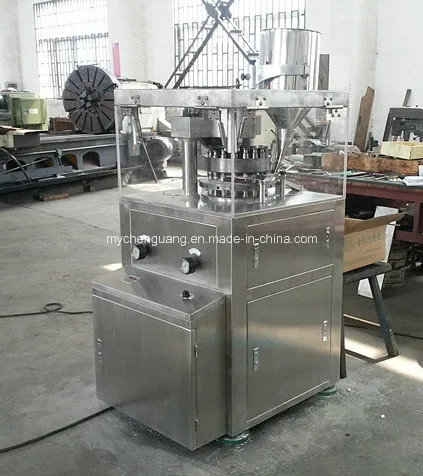

We are the rotary tablet press machine manufacturer since year 1986. Rotary tablet press machines we make have arrived Mexico/Brazil/UK/USA/Poland/Holland/Japan/India/Switzerland and so on. Introduction: VFP17 rotary tablet press machine can press any granular material into round or nun-round tablets, such as vitamin tablet, sweet tablets, salt blocks, and the components of electronics and so on.VFP17 rotary tablet press is widely used in food production, human health,chemistry, electronics and other industries. Its outside is made of stainless steel and its pressing room uses a new fully enclosed structure of plexiglass. It is bright and perspective, of good appearance and low noise, which is easy to operate and maintenance.
Characters: *Medium batch production *Tablets up to 25mm diameter *Maximum output of 20,000 tablets per hour *upper punch guards with transparent window *Pressing tablet Room 360 ° with transparent windows of plexiglass. No dead structure, easy to observe and clean. *Easy to clean and minimum maintenance *Ensures hygienic production condition and operator safety *Feeder drive system located outside at the tablet pressing zone *Easy accessibility for quick cleaning and product changeover *outside is made of stainless steel. Following is the specification of VFP17 tablet press machine for your reference.

Model	VFP17
Dies	17sets
Max Pressure	80Kn
Max Dia of Tablet	15-25mm
Max Depth of Fill	15-28mm
Max Thickness of Tablet	5-14mm
Turret Speed	1-18r/min
Production Capacity	D20mm30000-40000 pcs/h 25mm≥D20mm18000-20000pcs/h
Motor	3.0kw 1430r/min
Frequency Inverter	3.7kw
Net Weight	850kg
Overall Size	860*680*600 mm
