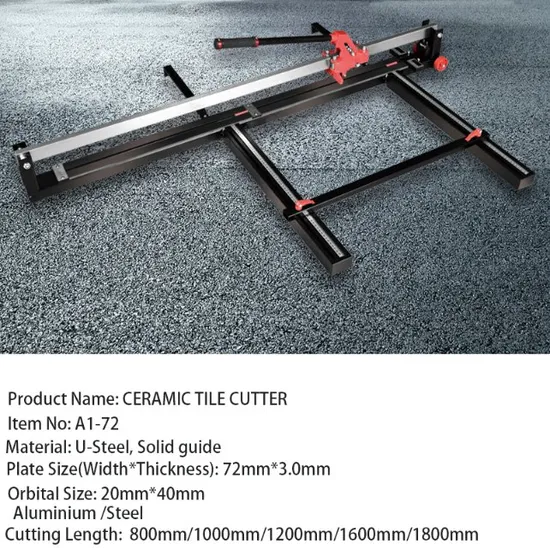

Carrelage Cutter Machine Ceramic Wall Stone Manual Porcelain Machinery Tile Cutter

Product Description

Manual ceramic tile cutting machinery is simple, environmental protection, clean, convenient, professional, precise, high quality and efficient. Features: No water, no electricity, no dust, no noise,successfully cut a tile in 3-5 seconds . Manual tile cutting machine no electricity, no dust, no noise, low loss. In this era of pursuing environmental protection, more and more construction personnel are aware of the serious harm caused by dust to their own health, as well as the huge impact of noise on the environment. Green manual tile cutting machine has come into people's life.
Manual Instruction
1) Open the free foot and tighten the nut
2) Adjust the size to be cut on the ruler rod, and tighten the fixing screw by hand after confirming.
3) Put the tile on the platform.
4)When cutting, first pull the push rod to the back end, let the blade gently press on the tile, push forward along the main shaft to the front control groove, put the box foot on the tile, gently hit the end of the push and pull handle, the tile can be broken with the knife mark.
Machine Characteristics
1)Fast cutting speed, several seconds to complete the job;
2)Good cutting effect, brick cutting straight, no collapse, high precision, smooth edge;
3)Low cutting cost, a cutter wheel can cut 50,000 to 70,000 meters;
4) No electricity, no water, no noise, no dust;
5)The operation is simple, convenient and safe.
Attention
1)When cutting, the thinner and shallower the cut marks, the more beautiful the edge of the tile will be after cracking. On the contrary, the deeper and thicker the cut marks, the more oblique and ugly the edge of the brick. Therefore, the force must be light when pushing, but the scratches on the tile can not be interrupted, otherwise, the tile will appear collapse Angle phenomenon.
2)Can only cut straight lines. Frequency Asked Question
