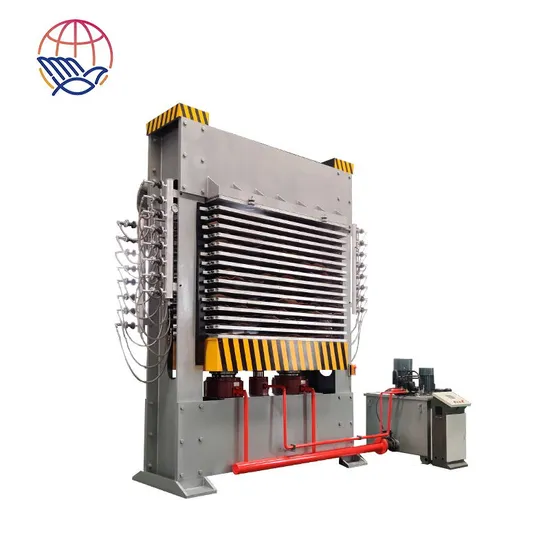

600 Tons Plywood Hot Press Machinery/ Hot Press Machine

Product Description

Model	YQHP4X8/500/15
Max pressure	500 Tons
Board feeding direction	Transverse
Layers	15Layers
Layer spacing	70mm
Number of hot press plate	16pcs
Hot press plate size	2700*1370*42mm
Cylinder	2*ø360mm*1050mm
	1*ø180mm*1050mm
Stroke	1050mm
Compression resistance	≤25 Mpa
Total Power	7.5KW+18.5kw
Low pressure pump flowing	250ml/r*1pcs
high pressure pump flowing	10ml/r*1pcs
Overall dimension	3550mm*1370mm*4650mm
Working methods	Full
Composite frame	Assembled
Upper and bottom beam	900mm
Middle beam	400mm
Thickness of the frame	35 mm
Weight	About 33Tons

Why Choose Us:
--------------------------
(1)lasering your logo on products and designing logo is free
(2)Delivery time within 30days
(3)No else charge
(4)MOQ≥1
(5)Provide products quotation
(6)Provide Packaging customization service
(7)SupportWechat/Email/whatsapp/
(8)We specializein this field for 25 years
(9)Excellent after-sale system
(10)Supporting visits to factory
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.

Q5: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We}ll provide technical guidance.
