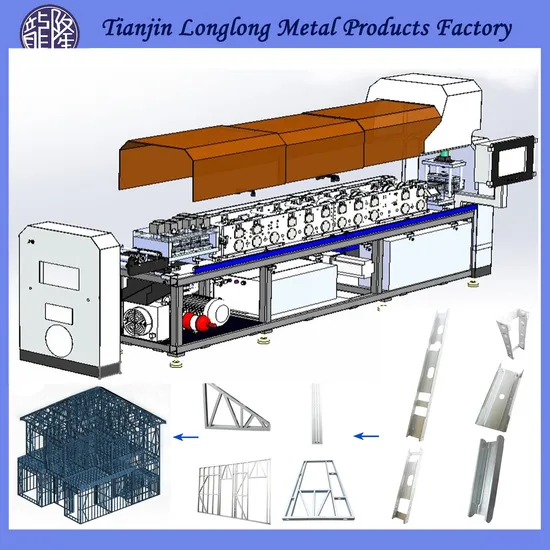

Vertex Bd House Design Light Steel Building Frame Making Machine for Floor&Wall&Stair Trust

Product Description

Detailed description of Building Construction Vertex BD House Design Light Steel Building Frame Making Machine For Floor&Wall&Stair Trust:

Main Technical data
No.		Item					Parameters
1		Model					LL-V55-15
2		Suitable material					G300-G550 Galvanized roll sheet & SGLC
3		Thickness					0.6-1.2mm
4		Total Speed					Max 100m/min
5		Total power					15KW
6		Size of Land occupation (mm)					14000X1300(L*W)
Main components list -- Whole Line
No.		Item					Unit			Qty
1		Decoiler					Set			1
2		Punching device					Set			1
2		Main roll rolling machine					Set			1
3		Cutting device					Set			1
4		Collector					Set			1
Detailed Description
Name				No.	Item			Parameters
Decoiler				1	Roll width			Max 200mm
				2	Length tolerance			±0.5mm
				3	Dia. of roll			Hydraulic, tension adjustable
				4	Speed			Variable frequency, automatic uncoiling
				5	Load weight			3Tons
Punching device				1	Mould material			Cr12Mov/ SD11
				2	Type			hydraulic, precision stamping die
				3	Hole punching			As drawings
Cutting device				1	Cutting			hydraulic
				2	Cutting mold			Cr12Mov/SD11 Precise cutting
Forming machine				1	Motor power			7.5KW AC, servo motor
				2	Forming step			12 steps
				3	Total forming frame step			15 steps
				4	Dia. of shaft			¢55mm
				5	Shaft			45#,thermal refining 220-250HB
				6	Driving method			Gear drive
				7	Speed			About 35m/min
				8	Roller			Cr12Mov,HR58-62
				9	Adjusting way			Electric and automatic
				10	Drive shaft bearing			NSK
Collector				1	Length			4m
Electric control
				1	Touch screen			18.5inch
Servo motor				1	Supplier			INVT
Inkjet Machine				1	Supplier			Sojet

Sample Photo:


Our other machinery
Why choose us
1.More than 29 years' experience, our products has been exported to more than 80 countries all over the world.
2.We supply manufacturing, design, installation, after-sales and other services.
3.Our annual production capacity: only for cold bending equipment: 30-200sets / year.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
