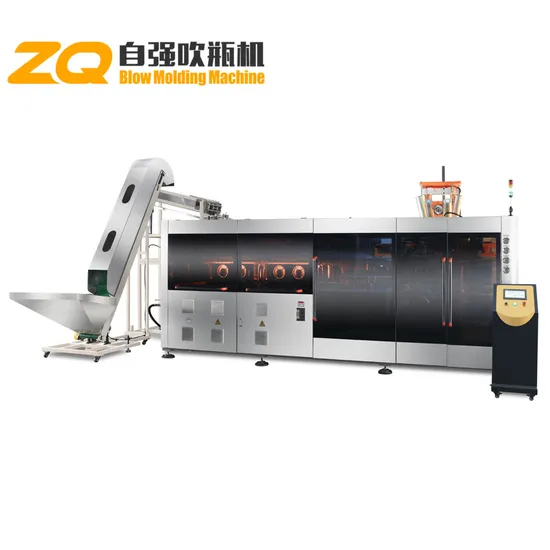

High Speed Fully Electric Plastic Pet Blowing Bottle Machine

Product Description

High Speed Fully Electric Plastic PET Blowing Bottle Machine Product Description
1 .The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2 .The preform feeding without turning device,simple structure,convenient maintance, reduce cost of spare part change.
3 .The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency enery saving by variable pitch structure.
4 .The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5 .Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.
6 .Mould closing adopts CAM linkage,no chain plate pin shaft small size, long service life.
7 .The stepping servo motor ensure high-speed operation and accurate positioning.
8.Servo moto is used to drive the stretching and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements.
9.Stainless steel pipe make the air blowing more clean without pollution.
10 .High pressure recycle system reduce power consumption.
11 .Multiple direction positioned for the autoloader make it more flexibly for installation.
12 .The machine is desighed to be compact in size.effectively reducing floor space.
High Speed Fully Electric Plastic PET Blowing Bottle Machine,equipment information. Product Parameters

ITEMS		UNIT	ZQ-G15L-2
CONTAINER	Number of Cavities	PC	2
	Max.Bottle Capactity	L	15
	Max.Neck Diameter	mm	60
	Max.Bottle Diameter	mm	250
	Max.Bottle Height	mm	500
	Theoretical Output	B.P.H	2300-2600
MOLDING	Spindle Chain Pitch	mm	76
	Bottle Cavity Pitch	mm	280
ELECTRICAL POWER	Max.heating Power	KW	120
	Servo Motor Power	KW	19
	Other Motor Power	KW	5
	Total Power	KW	144
	Voltage/Frequency	V/HZ	380±10% 50HZ/220V±10% 60HZ
AIR SYSTEM	Operating Pressure	Bar	7
	Low pressure Air Consumption	L/min	1000
	Blowing Pressure	Bar	35
	High Pressure Air Consumption	L/min*	12000
MOLD COOLING WATER	Operating Pressure	Bar	3-5
	Temperature Range	ºC	10-12
	Flow Rate	L/min	50
	Cooling Capacity	HP	5
HEATER COOLING WATER	Operating Pressure	Bar	3-5
	Temperature Range	ºC	15-20
	Flow Rate	L/min	50
	Cooling Capacity	HP	5
MACHINE	Size(L*W*H)	M	5.3*1.85*3.0
	Weight	KG	7000
REMARK	The theortical output is based on 500ml bottle shape,the final production capacity is based on the preform,bottle design and volume.
	The high pressure air consumption is based on the 500ml bottle,the final consumption will depend on the bottle volume and output.

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried. Detailed Photos
