5cbm Self Loading Concrete Mixer Truck TF50

Product Description

Product Description
1.Advantages Of Our Concrete Mixer * Original Price: FOB, CNF/CFR, CIF
* Certificates: CE, ISO
* Promptly Delivery:15-20 days
* Excellent After-sale Service and Customization Service.
2.Product Description
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
3.Main Features 1) The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3) It has independent water supply system, which can ensure the high quality of concrete.
4) It just need one operator to drive, load, and mix raw material while moving it. 4.Technical Parameter

Mixing drum	Capacity : 4.0M3, 14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
Engine parameters	Yuchai YCD4P22T-130 , rated power/turns: 95kw (129HP)/ 2400rpm.
Drive system	Hydraulic component( variable stroke pump) : Eaton two grades gear transmission : road/off road, 4 wheel drive
Speed	Low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
Cabin	Front cabin with rops &fops design, Double backward camera, sunshade curtain, Air conditioning
Hydraulic system	variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air
Joystick	All working operation designed in one joystick
Bucket	Capacity: 0.6m3 hydraulic controlled door
Chute	Adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
Water system	Water pump with high pressure washing gun
Climbing angle	degree with full load
Brake	Wet brake, parking brake with gear box
Tires	Off-road engineering tire 16/70-20 PR16
Steering	Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm
Electric system	Battery :2X12V 120Ah, provide lighting and ignition
Fuel tank	110L
Hydraulic oil tank	80L
Carframe	All steel welding
Weight	Off load:8t, full load :18t
Weighing system	Equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
Dimensions(LxWxH)	7500*2700*3380mm

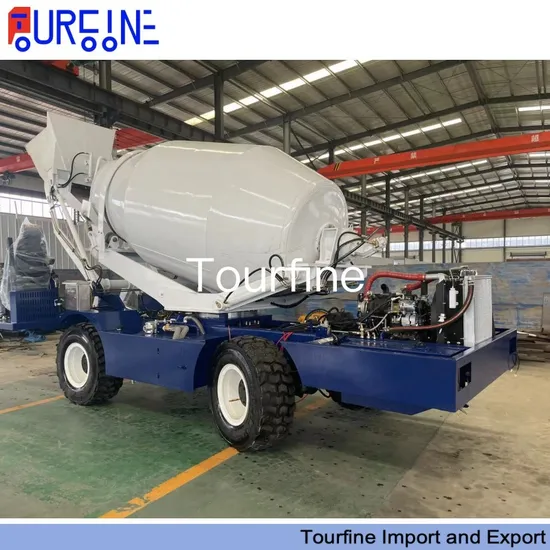

Detailed Photos
FAQ
Product Description Welcome to Beijing Tourfine Import and Export Co. Ltd! We are pleased to introduce our high-quality products and exceptional services to meet your needs. Here are some key details about our offerings:
MOQ: Our minimum order quantity is one unit, allowing you to conveniently purchase the quantity you require. Payment Terms: We accept T/T (Telegraphic Transfer) or LC (Letter of Credit) as secure payment methods. After Sales Service: We are committed to providing excellent after-sales support. Our technical team is available to offer assistance, and we ensure the availability of spare parts for the long lifespan of our products. Spare parts can be conveniently delivered to you via DHL, ***, UPS, or FedEx. Shipping Method: We offer various shipping methods, including container, flat rack container, Roro vessel, and bulk vessel, to ensure safe and efficient delivery of your order. Delivery Time: Depending on the product, our delivery time ranges from 7 days to 60 days after receiving the deposit. We strive to deliver your order promptly. Special Requirements: We are dedicated to meeting your specific requirements. Our team can manufacture trailers and trucks according to your unique specifications. Spare Parts Quality: We guarantee the quality of our spare parts, ensuring that they meet your expectations. Thank you for considering Beijing Tourfine Import and Export Co. Ltd as your trusted supplier. We look forward to serving you with our exceptional products and services.
