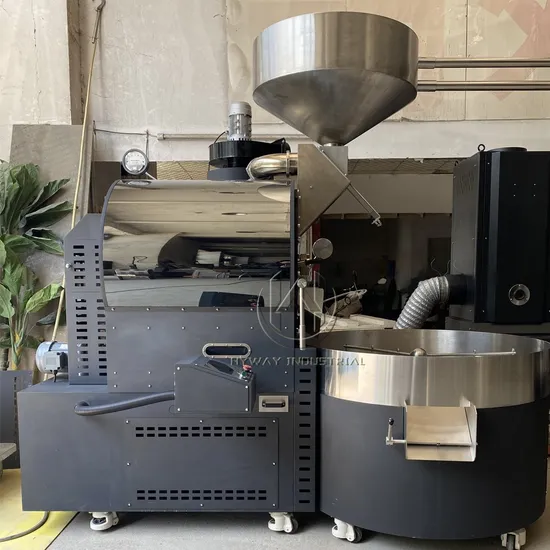

Hw-17kg Smart Touch Screen Gas Heating Double Drum Cast Iron Stainless Steel Hot Air Heating Coffee Roasting Machine Coffee Roaster Bakery Equipment

Product Description

HW-17kg 15kg gas heating double drum cast iron stainless steel hot air coffee roasters coffee bean coffee roaster machine Product Description
HW-17kg 15kg hot air heating roaster machine is very suitable for offee shop,Commercial roast coffee beans usage .
The whole machine adopts lasercutting technology.Using welding process to fix the whole frame.
The drum is made by 304 Stainless Steel & Cast Iron.

The roaster machine can be connected with the computer, to achieve the output of Record Roasting Curve via Bluetooth / USB Data Transmission by Artisan,bring more accurate operation for your roaste.
Roaster machine capacity from 15-17kg all can be roasted out of the taste you want.
Product Parameters

Roaster Model	17kg Gas Model Coffee Roaster Machine
Capacity	15-17kg/batch
Fire Heating Control System	Classical Botton Key / Smart Intelligent Touch Screen
Data Logger	Bluetooth / USB Data Transmission Record Roasting Curve by Artisan
Drum Materials	Stainless Steel & Cast Iron
Roaster Time	12~20 minutes/batch
Production	68kg/hr , 680kg/day
Heating mode	Direct Fire semi Hot Air Heating
Heating Source	Natural Gas/ Propane
Voltage	110V/220V 50/60HZ
Roaster Power	1500W
Drum Motor	200W
Chaff Fan Motor	370W
Cooling Fan Motor	370W
Cooling Tray Motor	120W
Drum Thick	10mm
Body Color	Customized by Clients' Inquiry
Housing Cover Color	Rose Gold / Black / Stainless Steel
Size	2070*1250*1920mm
Gross / Net Weight	1020kg / 850kg

Our Advantages
304 Stainless steel drum with the special mixing blades to ensure the best blending and even roast.
Drum Materials:Stainless Steel or Cast Iron can be choosen
Fire Heating Control System:Classical Botton Key / Smart Intelligent Touch Scren Model can be choose
Roasting and cooling can work at same time, separated chaff cyclone for effective chaff separation.
High quality stainless steel cooling tray with bin agitator
Factory made high quality burner for effective heating, fuel saving.
Self ignition with adjustable heat controls
High grade insulation layer for keeping heat inside the drum
Sight glass, burner window glass, sampler spoon and the real-time temperature displays for accuratemonitoring during roasting.
Programmable Temperature preset with alarm feature & manual settings.
Four high quality motors to control drum, hot air volume, Cooling tray and Cooling mixing.
Non-stop roasting from 15-17kg
Complete manual control of air flow to maximize coffee taste
Auxiliary LED Lamp attached
2-in-1 Ground legs and Casters for easy moving and balancing the machine.
Record Roasting Curve USB/Bluetooth Via Artisan
Drum Speed control
Worktable (Option)
External
OMRON brand thermostat.Display temperature is more sensitive and accurate.
Equiped with an OMRON timer, easy to check the roasting time.
Electronic throttle control, through the knob to change the exhausting motor speed and the fan speed, to realize stepless control.
Manual dammer for controlling airflow volume in precisely.
SIEMENSAPT LED colorful industry button, switch button,service life of up to 50000 times.Not only beautiful and more easy to operate.
Large flame observation window, so that the baking room situation is absolutely clear.
Large volume sampler spoon, finest rosewood handle, with artificial mechanical design, make your grip more comfortable.
Coffee bean hopper 304 stainless steel materials,can ensure food safety. Just gently stir, coffee beans can quickly fall into the drum. With coffee beans observation window, can observe the coffee beans at any time when you baking. Humanized design of cooling plate is easyily to operate. Independent cooling fan with the mixing arms,can quickly cool the roasted coffee beans. Drum motor speed is adjustable,the range is 0~100 rpm. The machineis installed with USB interface, can communicate with the computer. Artisan software can be perfectly compatible. The machine shell has three colors:golden,titanium and sliver for you choose. Gas control
Gas pressure control:Gas pressure meter is equipped with 304 stainless steel needle valve,can achieve more accurate gas pressure adjustment.
Automatic ignition function:The ignitor will be automatically fire up when you press the ignition button.Then the solenoid valve will open automatically and switch on the gas.The red LED button will lit up if the burner are flaming.Solenoid valve will shut off gas automatically and the buzzer will start to ring if there is no flame in 10 seconds.
Detection of flame extinction:The ignitor will be automatically fire up if the flame goes out whenyou are baking.Solenoid valve will shut off gas automatically and the buzzer will start to ring if there is no flame in 10 seconds.
Thermostatical control:Temperature controller can set the constant temperature.The machine will shut off the gas when the temperature reaches the set temperature.When the temperature is lower than the set temperature,the machine can switch on the gas automatically and start heating,so that the temperature has been constant at the set temperature.

Inside
Roater Drum:Using the international 304 standard food grade stainless steel, to make sure the pure taste of roasted coffee beans is not affected by other off-flavors. With the independent design of the stirring blades,the coffee beans will do reciprocating moving in drum, make the baking more uniform, the skin more easily to drop off. Gas Burner: using high efficiency energy--saving furnace head,the fire is more powerful,and more economical to use. Maximum heating rate is 20 degrees / min, to meet the changing needs of the baking. Insulation Layer: There is a 30mm thick insulation layer to reduce temperature loss. Operation

I. Connection of gas and electric circuit
1. Connect one end of the gas pipe with a pressure reducing valve to the gas source, the other end connected to the gas machine interface, and fixed with a clamping band to prevent gas leakage.
2. Connect the machine power plug to the single phase AC 220V power supply.
3. Power button: press the power button, the drum motor and the hot air blower start running.
4. Heating button: press the heating button, the machine will automatically switch on gas and ignition.Need to confirm the gas control valve open in a smaller position before pressing the heating button,Otherwise,the gas pressure meter will be damaged if the gas flow is too large.The maximum pressure is limited below 5KPa.
5. Cooling button: press the cooling button,the cooling fan start working.


Cleaning and maintenance
There will be some silver skin fall into the drawer during the baking process , just pull out the drawer and pour out the silver skin. There will be a little silver skin and broken beans under cooling plate, just take out the cooling plate to clean the inside. There will be a lot of silver skin in collecting barrel, just open the hinge so can clean the silver skin inside. After Sales Service
